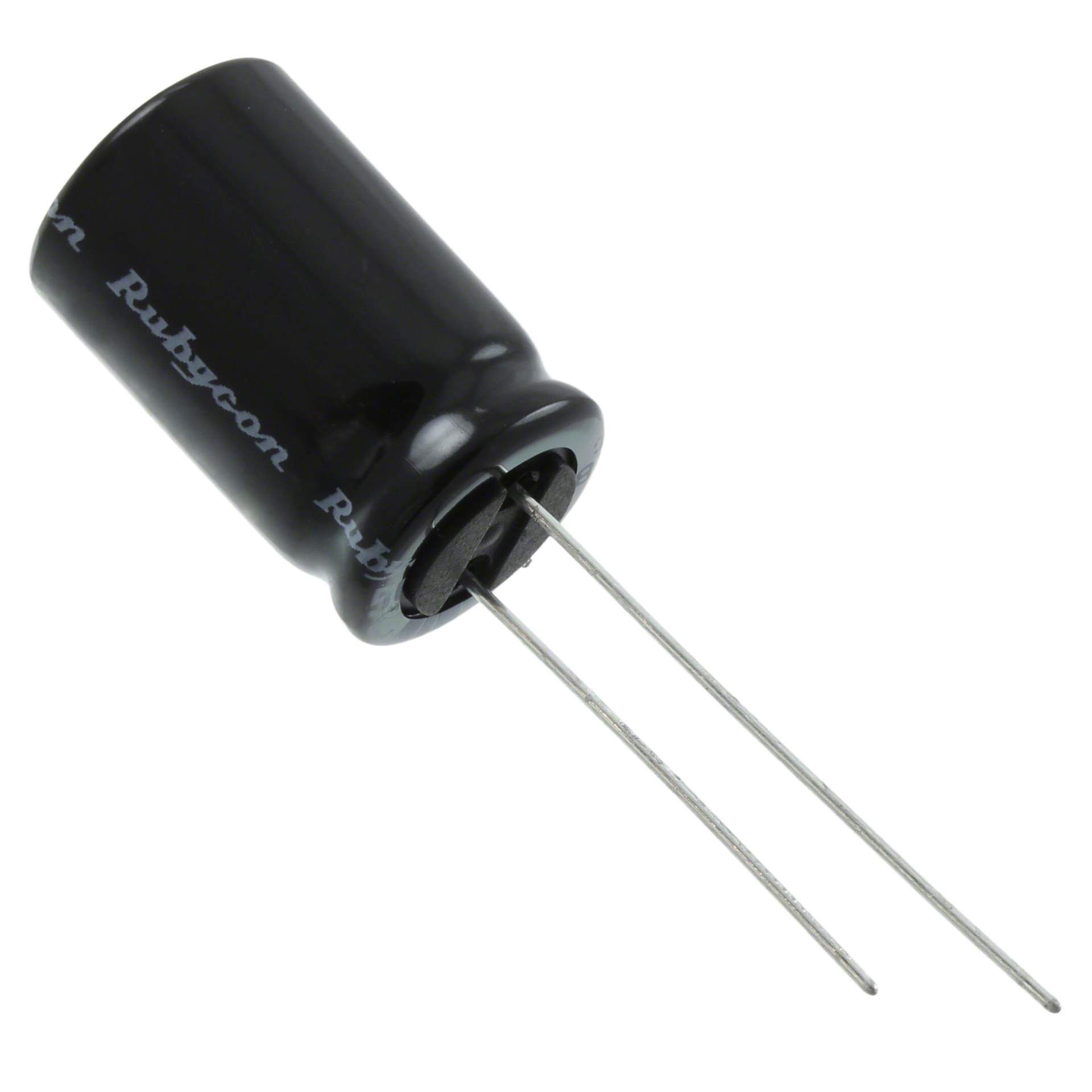

16YXJ2200M12.5X20 Real Image
Same model may have multiple batches, images only for reference.

16YXJ2200M12.5X20

Part No 16YXJ2200M12.5X20
Manufacturer Rubycon
Catalog Aluminum Capacitors
Description CAP ALUM 2200UF 20% 16V RADIAL / 2200 µF 16 V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Manufacturer Rubycon
Packaging Bulk
Capacitance 2200 µF
Tolerance ±20%
Voltage - Rated 16 V
Lifetime @ Temp. 10000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 1.52 A @ 120 Hz
Ripple Current @ High Frequency 1.9 A @ 100 kHz
Impedance 41 mOhms
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.492" Dia (12.50mm)
Height - Seated (Max) 0.866" (22.00mm)
Mounting Through Hole
Case / Package Radial, Can
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Part Number 1189-3710,16YXJ2200M12.5X20-ND
Standard Package 1,000
Win Source Part Number 1329518-16YXJ2200M12.5X20
Ultra Librarian 3D Model Ultra Librarian 16YXJ2200M12.5X20 CAD Model

Description

The 1329518-16YXJ2200M12.5X20 capacitor is an aluminum electrolytic capacitor designed for general-purpose applications from Rubycon.

  • Capacitance: 2200 µF
  • Voltage Rating: 16 V
  • Tolerance: ±20%
  • Lead Spacing: 0.197" (5.00mm)
  • ESR (Equivalent Series Resistance): Not specified
  • Polarized: Yes
  • Package: Radial, can
  • Height: 0.866" (22.00mm)
  • Diameter: 0.492" (12.50mm)
  • Temperature Range: -40°C ~ 105°C
  • Lifetime: 10000 Hrs @ 105°C
  • Ripple Current @ Low Frequency: 1.52 A @ 120 Hz
  • Ripple Current @ High Frequency: 1.9 A @ 100 kHz
