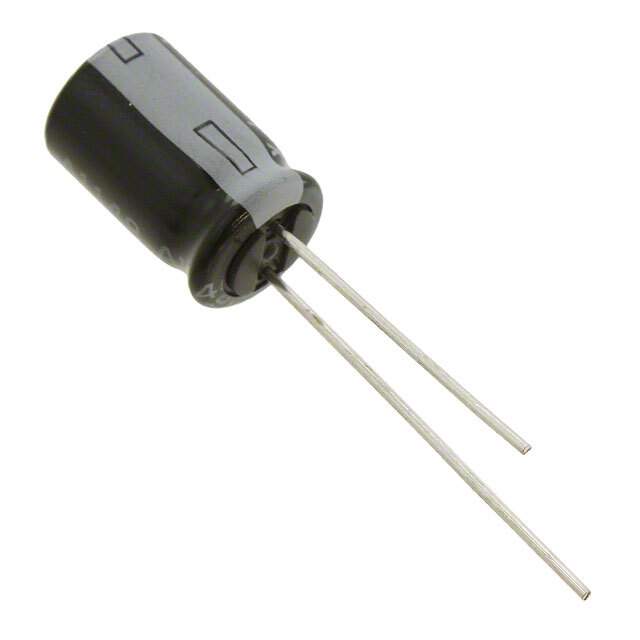

25PX470MEFC8X11.5 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Rubycon
Series PX
Package Bulk
Capacitance 470 µF
Tolerance ±20%
Voltage - Rated 25 V
Lifetime @ Temp. 1000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 440 mA @ 120 Hz
Lead Spacing 0.138" (3.50mm)
Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.512" (13.00mm)
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Standard Package 2,000
Win Source Part Number 1113585-25PX470MEFC8X11.5
Ultra Librarian 3D Model Ultra Librarian 25PX470MEFC8X11.5 CAD Model

Description

The Rubycon 1113585-25PX470MEFC8X11.5 capacitor is a high-quality aluminum electrolytic capacitor that is ideal for general-purpose applications.

  • Capacitance: 470 µF
  • Voltage Rating: 25 V
  • Tolerance: ±20%
  • ESR: Not specified
  • Lifetime: 1000 Hrs @ 105°C
  • Polarization: Polar
  • Mounting Type: Through-hole
  • Package/Case: Radial and can
  • Dimensions: 0.315" Dia (8.00mm)
  • Series: PX series
  • Packaging: Bulk
  • Operating Temperature: -55°C to 105°C
  • Ripple Current @ Low Frequency: 440 mA @ 120 Hz
