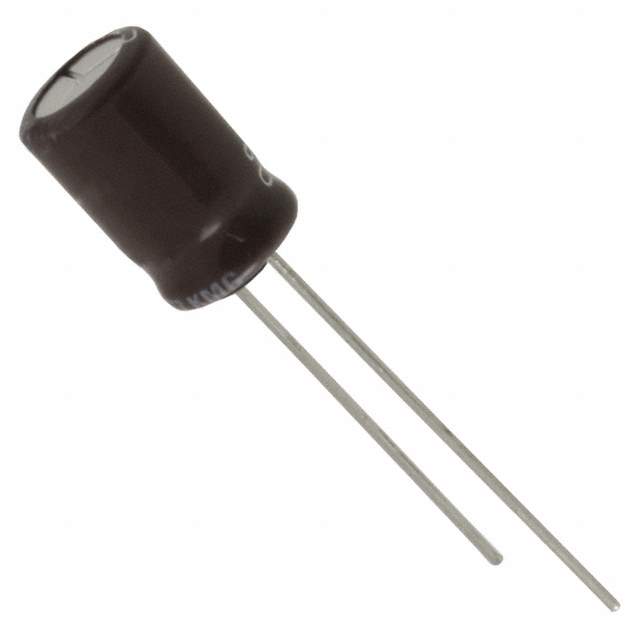

Same model may have multiple batches, images only for reference.

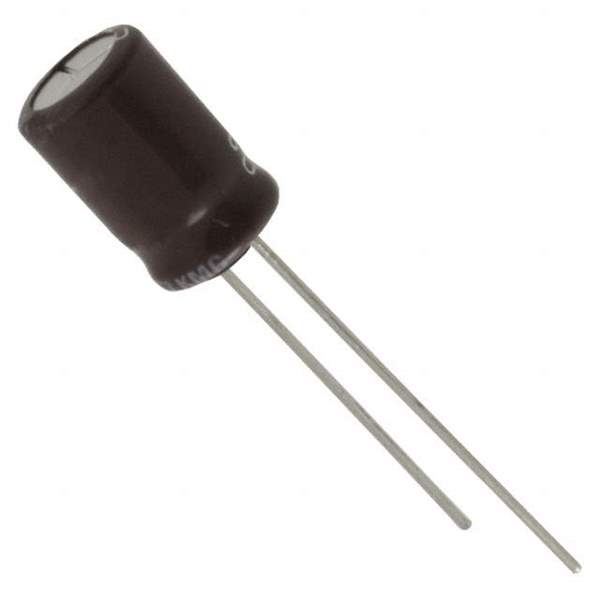

EKMG250ELL331MHB5D Real Image
Same model may have multiple batches, images only for reference.

EKMG250ELL331MHB5D

Part No EKMG250ELL331MHB5D
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 330UF 20% 25V RADIAL  /  330 µF 25 V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series KMG
Package Bulk
Capacitance 330 µF
Tolerance ±20%
Voltage - Rated 25 V
Lifetime @ Temp. 1000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 310 mA @ 120 Hz
Ripple Current @ High Frequency 465 mA @ 100 kHz
Lead Spacing 0.138" (3.50mm)
Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.512" (13.00mm)
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names 565-1309
Standard Package 1,000
Win Source Part Number 1126303-EKMG250ELL331MHB5D
Ultra Librarian 3D Model Ultra Librarian EKMG250ELL331MHB5D CAD Model

Description

The KMG series aluminum electrolytic capacitor from United Chemi-Con is a polarized capacitor with a capacitance of 330 µF and a voltage rating of 25 V.

  • Capacitance: 330 µF
  • Voltage - Rated: 25 V
  • Tolerance: ±20%
  • ESR (Equivalent Series Resistance): -
  • Ripple Current @ Low Frequency: 310 mA @ 120 Hz
  • Ripple Current @ High Frequency: 465 mA @ 100 kHz
  • Lifetime @ Temp.: 1000 Hrs @ 105°C
  • Mounting Type: Through Hole
  • Package / Case: Radial, Can
  • Height - Seated (Max): 0.512" (13.00mm)
  • Diameter: 0.315" (8.00mm)
  • Lead Spacing: 0.138" (3.50mm)
  • Applications: General Purpose
  • Polarization: Polar
  • REACH Status: Unaffected
  • ECCN: EAR99
  • HTSUS Code: 8532.22.0020
