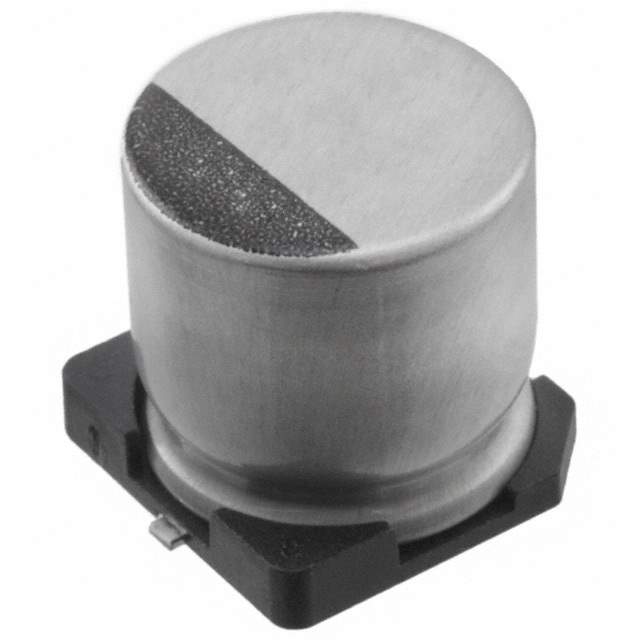

25TZV220M8X10.5 Real Image
Same model may have multiple batches, images only for reference.

25TZV220M8X10.5

Part No 25TZV220M8X10.5
Manufacturer Rubycon
Catalog Aluminum Capacitors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Rubycon
Series TZV
Package Tape & Reel
Capacitance 220 µF
Tolerance ±20%
Voltage - Rated 25 V
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 360 mA @ 120 Hz
Ripple Current @ High Frequency 600 mA @ 100 kHz
Impedance 160 mOhms
Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.413" (10.50mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
Other Names 1189-2442-1,1189-2442-2,25TZV220M8X10.5,1189-2442-6
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1307295-25TZV220M8X10.5
Ultra Librarian 3D Model Ultra Librarian 25TZV220M8X10.5 CAD Model

Description

The Rubycon 1307295-25TZV220M8X10.5 is an aluminum electrolytic capacitor with a capacitance of 220 µF and a voltage rating of 25 V.

  • Tolerance: ±20%
  • Surface Mount Land Size: 0.327" L x 0.327" W (8.30mm x 8.30mm)
  • Impedance: 160 mOhms
  • Ripple Current @ Low Frequency: 360 mA @ 120 Hz
  • Ripple Current @ High Frequency: 600 mA @ 100 kHz
  • Height: 0.413" (10.50mm) when seated
  • Dimension: 0.315" Dia (8.00mm)
  • Lifetime: 2000 Hrs @ 105°C
  • Operating Temperature Range: -55°C ~ 105°C
  • Application: Automotive
  • Package: Radial, can-SMD package
  • ECCN: EAR99
  • ROHS3 compliant: Yes
