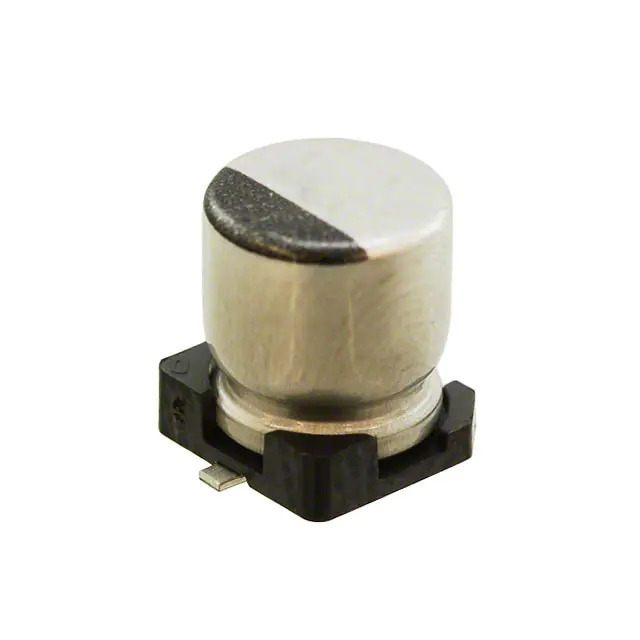

Same model may have multiple batches, images only for reference.
25TZV47M6.3X6.1 Rubycon
Same model may have multiple batches, images only for reference.

25TZV47M6.3X6.1

Part No 25TZV47M6.3X6.1
Manufacturer Rubycon
Catalog Aluminum Capacitors
Description CAP ALUM 47UF 20% 25V SMD / 47 µF 25 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series TZV
Package Tape & Reel
Product Status Active
Capacitance 47 µF
Tolerance ±20%
Voltage - Rated 25 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 80 mA @ 120 Hz
Ripple Current @ High Frequency 250 mA @ 100 kHz
Impedance 360 mOhms
Lead Spacing -
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.240" (6.10mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1360195-25TZV47M6.3X6.1
Ultra Librarian 3D Model Ultra Librarian 25TZV47M6.3X6.1 CAD Model

Description

The Rubycon 1360195-25TZV47M6.3X6.1 is a surface mount aluminum electrolytic capacitor designed for automotive applications.

  • Capacitance: 47 µF
  • Voltage - Rated: 25 V
  • Tolerance: ±20%
  • Ripple Current @ Low Frequency: 80 mA @ 120 Hz
  • Ripple Current @ High Frequency: 250 mA @ 100 kHz
  • Package / Case: Radial, Can - SMD
  • Mounting Type: Surface Mount
  • Size / Dimension: 0.248" Dia (6.30mm)
  • Height - Seated (Max): 0.240" (6.10mm)
  • Lifetime @ Temp.: 2000 Hrs @ 105°C
  • Manufacturer: Rubycon
  • Series: TZV
  • AEC Standard: AEC-Q200
  • Application: Automotive
