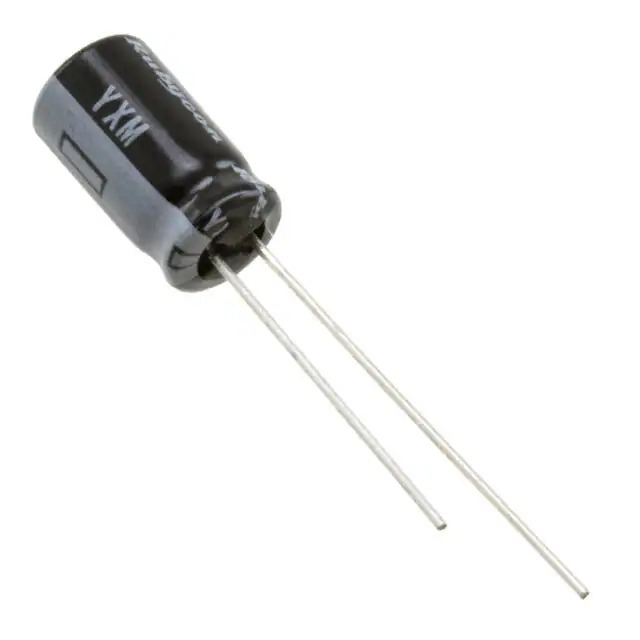

50YXM22MEFC5X11 Rubycon
Same model may have multiple batches, images only for reference.

50YXM22MEFC5X11

Part No 50YXM22MEFC5X11
Manufacturer Rubycon
Catalog Aluminum Capacitors
Description CAP ALUM 22UF 20% 50V RADIAL / 22 µF 50 V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series YXM
Package Tape & Box (TB)
Product Status Obsolete
Capacitance 22 µF
Tolerance ±20%
Voltage - Rated 50 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 10000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 74.25 mA @ 120 Hz
Ripple Current @ High Frequency 135 mA @ 100 kHz
Lead Spacing 0.079" (2.00mm)
Size / Dimension 0.197" Dia (5.00mm)
Height - Seated (Max) 0.492" (12.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357736-50YXM22MEFC5X11
Ultra Librarian 3D Model Ultra Librarian 50YXM22MEFC5X11 CAD Model

Description

The Rubycon YXM series aluminum electrolytic capacitor is a reliable component suitable for various electronic applications.

  • Series: YXM
  • Capacitance: 22 µF
  • Voltage Rating: 50 V
  • Tolerance: ±20%
  • Ripple Current (Low Frequency): 74.25 mA @ 120 Hz
  • Ripple Current (High Frequency): 135 mA @ 100 kHz
  • Diameter: 0.197"
  • Height: 0.492"
  • Mounting Type: Through Hole
  • Lead Spacing: 0.079" (2.00mm)
  • Lifetime: 10,000 hours @ 105°C
  • Manufacturer: Rubycon
