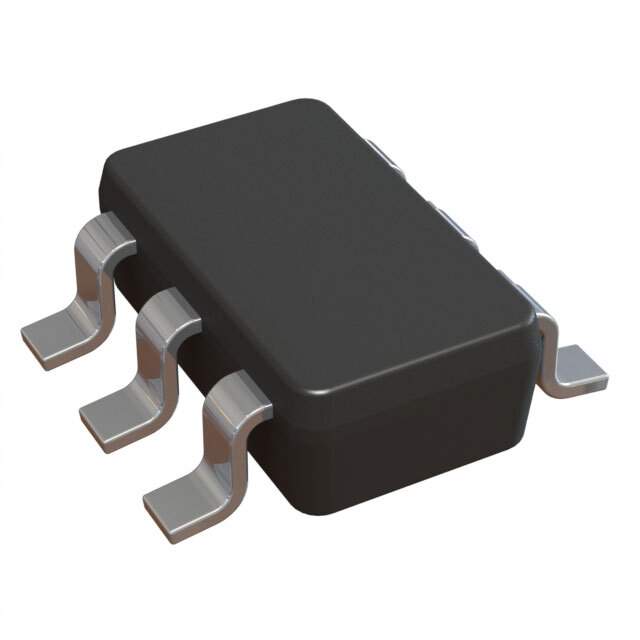

RS3236-3.0YF5 Real Image
Same model may have multiple batches, images only for reference.

RS3236-3.0YF5

Part No RS3236-3.0YF5
Manufacturer Runic Technology
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LINEAR 3.0V 500MA SOT23-5 / Linear Voltage Regulator IC Positive Fixed 1 Output 500mA SOT-23-5
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>PMIC - Voltage Regulators - Linear
Mfr Runic Technology
Package Tape & Reel
Output Configuration Positive
Output Type Fixed
Number of Regulators 1
Voltage - Input (Max) 7.5V
Voltage - Output (Min/Fixed) 3V
Current - Output 500mA
Current - Quiescent (Iq) 40 µA
PSRR 74dB ~ 70dB (217Hz ~ 1kHz)
Control Features Enable
Protection Features Over Current, Over Temperature
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting SMD (SMT)
Package / Case SC-74A, SOT-753
Supplier Device Package SOT-23-5
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.9000
Other Names 3565-RS3236-3.0YF5DKR,3565-RS3236-3.0YF5CT,3565-RS3236-3.0YF5TR
Standard Package 3,000
Win Source Part Number 1089043-RS3236-3.0YF5
Ultra Librarian 3D Model Ultra Librarian RS3236-3.0YF5 CAD Model

Description

The Runic Technology 1089043-RS3236-3.0YF5 is an integrated circuit that is used as a voltage regulator in various electronic devices.

  • Output Type: Fixed
  • Output Current: Up to 500mA
  • Protection Features: Overcurrent and overtemperature protection
  • Quiescent Current: 40 µA
