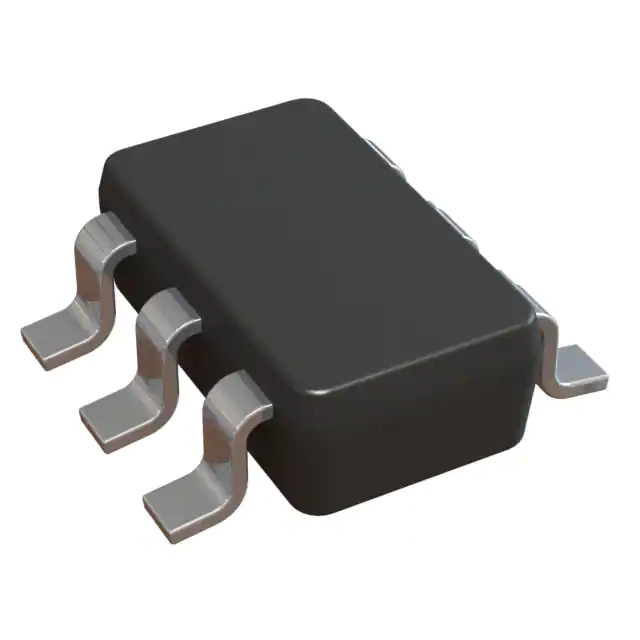

Same model may have multiple batches, images only for reference.
RS3236-ADJ8YF5 Runic Technology
Same model may have multiple batches, images only for reference.

RS3236-ADJ8YF5

Part No RS3236-ADJ8YF5
Manufacturer Runic Technology
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LIN POS ADJ 500MA SOT23-5
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Power Management (PMIC) - Voltage Regulators - Linear
Mfr Runic Technology
Series -
Package Tape & Reel
Product Status Active
Output Configuration Positive
Output Type Adjustable
Number of Regulators 1
Voltage - Input (Max) 7.5V
Voltage - Output (Min/Fixed) 0.81V
Voltage - Output (Max) 6.6V
Voltage Dropout (Max) -
Current - Output 500mA
Current - Quiescent (Iq) 40 µA
PSRR 74dB ~ 70dB (217Hz ~ 1kHz)
Control Features Enable
Protection Features Over Current, Over Temperature
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case SC-74A, SOT-753
Supplier Device Package SOT-23-5
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1372367-RS3236-ADJ8YF5
Ultra Librarian 3D Model Ultra Librarian RS3236-ADJ8YF5 CAD Model

Description

The RS3236-ADJ8YF5 is a linear voltage regulator from Runic Technology.

  • Operating Temperature: -40°C to 85°C
  • Output Type: Adjustable
  • Output Voltage: 0.81V to 6.6V
  • Input Voltage (Max): 7.5V
  • Output Current: 500mA
  • Features: Enable, Over Current Protection, Over Temperature Protection
  • Package: SC-74A, SOT-753
  • Mounting Type: Surface Mount
