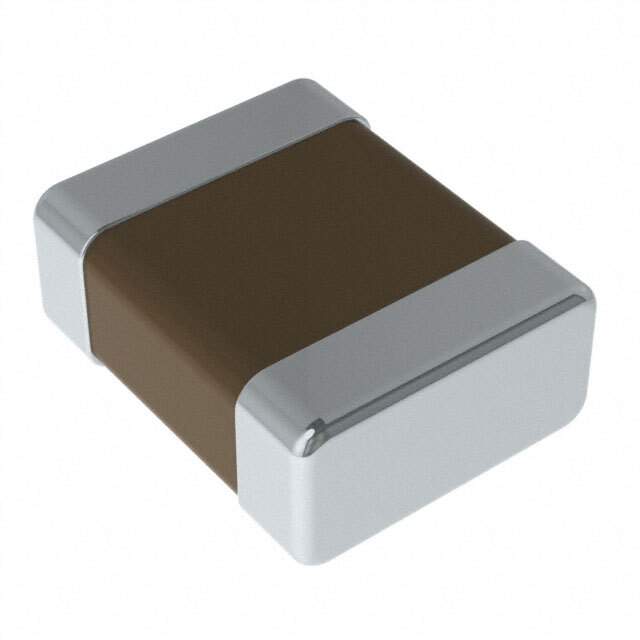

CIG22H2R2MAE

Name: CIG22H2R2MAE
Brand: Samsung
SKU: 1327356
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	CIG22H2R2MAE
Manufacturer	Samsung
Catalog	Fixed Inductors
Description	FIXED IND 2.2UH 1.2A 138MOHM SMD / 2.2 µH Shielded Multilayer Inductor 1.2 A 138mOhm 1008 (2520 Metric)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Manufacturer	Samsung Electro-Mechanics
Packaging	Reel - TR
Product Status	Obsolete
Type	Multilayer
Inductance	2.2 µH
Tolerance	±20%
Current Rating (Amps)	1.2 A
Current - Saturation (Isat)	1.1A
Shielding	Shielded
DC Resistance (DCR)	138mOhm
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	1 MHz
Mounting	Surface Mount
Case / Package	1008 (2520 Metric)
Supplier Device Package	1008 (2520 Metric)
Size / Dimension	0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max)	0.039" (1.00mm)
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Other Part Number	1276-6222-6,1276-6222-2,1276-6222-1
Standard Package	3,000
Win Source Part Number	1327356-CIG22H2R2MAE
Ultra Librarian 3D Model	Ultra Librarian CIG22H2R2MAE CAD Model

Alternative Products

Description

The 1327356-CIG22H2R2MAE inductor from Samsung Electro-Mechanics is a shielded, multilayer type inductor with a size of 0.098" L x 0.079" W (2.50mm x 2.00mm).

Inductance: 2.2 µH
DC Resistance (DCR): 138mOhm
Tolerance: ±20%
Current Rating: 1.2Amps
Mounting: Surface Mount
Supplier Device Package: 1008 (2520 Metric)
Temperature Range: -40°C to 125°C
MSL Level: 1 (Unlimited)
HTSUS: 8504.50.4000
ROHS3 Compliant: Yes
REACH: Unaffected
