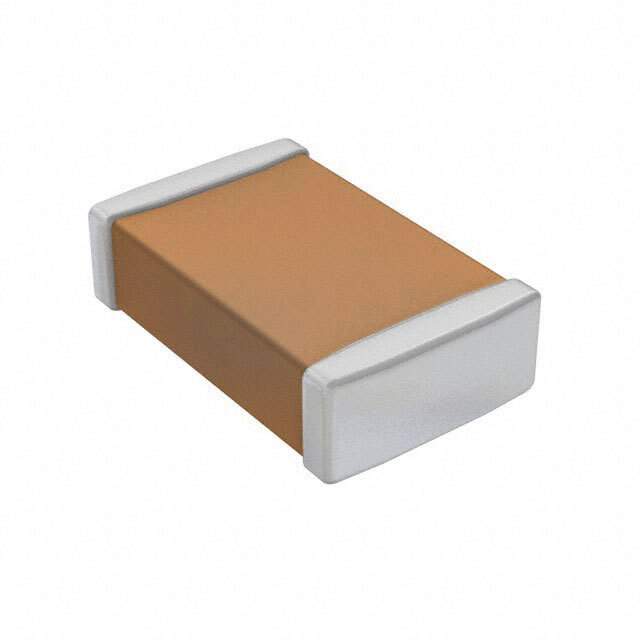

The CL10A475KQ5LNNC is a multilayer ceramic capacitor (MLCC) manufactured by Samsung. MLCCs are widely used in electronic circuits for decoupling, filtering, and energy storage due to their small size, high capacitance values, and reliable performance. This specific capacitor has a capacitance value of 4.7µF, a voltage rating of 16V, and a X5R dielectric. The package size is 0603 (1.6mm x 0.8mm).

Applications

• Decoupling capacitors: Used to decouple power supplies in digital circuits, reducing noise and improving stability.
• Filtering applications: Employed in filtering circuits to remove unwanted frequencies and noise.
• Energy storage: Used for energy storage in low-power applications, such as backup power circuits.
• Bypass capacitors: Used to bypass high-frequency signals to ground, improving signal integrity.
• Timing circuits: Used in timing circuits to set the frequency of oscillators and timers.

Features

• High capacitance value: Offers a relatively high capacitance of 4.7µF in a small package.
• X5R dielectric: Provides stable capacitance over a wide temperature range.
• Small 0603 package: A compact surface-mount package for high-density circuit designs.
• High voltage rating: Suitable for applications with voltage levels up to 16V.
• RoHS compliant: Compliant with RoHS environmental standards.

Benefits

• Effective decoupling: Reduces noise and improves stability in digital circuits.
• Stable performance: Maintains stable capacitance over temperature variations.
• Space-saving design: The small package allows for high-density circuit layouts.
• Reliable operation: Offers reliable performance in a wide range of operating conditions.
• Cost-effective solution: Provides a cost-effective solution for decoupling and filtering applications.

Additional Details

The CL10A475KQ5LNNC has a capacitance tolerance of ±10%. The operating temperature range is typically -55°C to +85°C. The X5R dielectric offers good temperature stability compared to other dielectrics like Y5V. The 0603 package requires proper soldering techniques. Proper placement and soldering are critical for reliable performance. Consider using reflow soldering for automated assembly. Refer to the Samsung datasheet for detailed electrical characteristics, soldering guidelines, and reliability information. The capacitor is typically used with other passive components like resistors and inductors to create complete filtering circuits. Keep track of moisture sensitivity levels for proper storage before soldering. The "Q5" is a voltage rating code.
