Same model may have multiple batches, images only for reference.

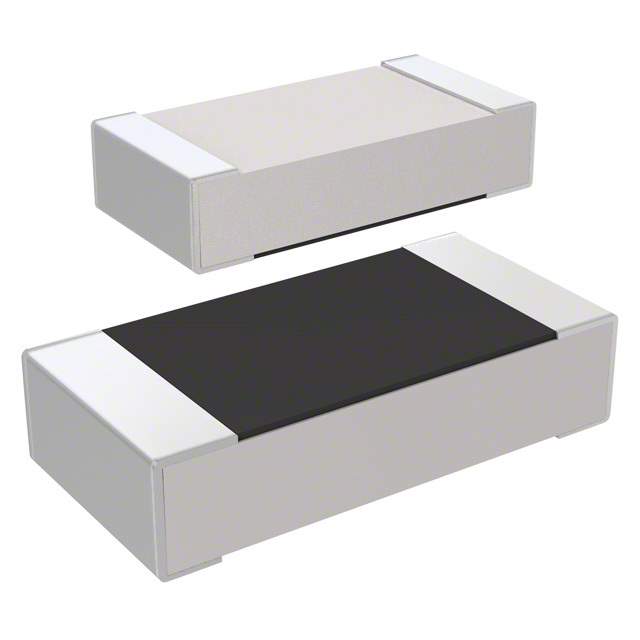

RC3216J162CS Real Image
Same model may have multiple batches, images only for reference.

RC3216J162CS

Part No RC3216J162CS
Manufacturer Samsung
Catalog Chip Resistor - Surface Mount
Description RES SMD 1.6K OHM 5% 1/4W 1206  /  1.6 kOhms ±5% 0.25W, 1/4W Chip Resistor 1206 (3216 Metric) Moisture Resistant Thick Film
Datasheet
RC3216J162CS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Samsung Electro-Mechanics
Series RC
Package Tape & Reel
Resistance 1.6 kOhms
Tolerance ±5%
Power (Watts) 0.25W, 1/4W
Composition Thick Film
Features Moisture Resistant
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 1206 (3216 Metric)
Supplier Device Package 1206
Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max) 0.026" (0.65mm)
Number of Terminations 2
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Other Names 1276-5913-1,1276-5913-6,1276-5913-2
Standard Package 5,000
Win Source Part Number 1087611-RC3216J162CS
Ultra Librarian 3D Model Ultra Librarian RC3216J162CS CAD Model

Description

The RC chip resistor from Samsung Electro-Mechanics is a surface-mount device with a resistance of 1.6kOhms and a power rating of 0.25W.

  • Resistance: 1.6kOhms
  • Power Rating: 0.25W
  • Tolerance: ±5%
  • Temperature Coefficient: ±100ppm/°C
  • Terminations: Two
  • Package: 1206 (3216 Metric)
  • Feature: Moisture-resistant
  • Temperature Range: -55°C to 155°C
  • Alternative Parts: RC1206JR-071K6L, AC1206JR-071K6L, RC1206JR-101K6L, CRGH1206J1K5, ERJ-8GEYJ162V, and CRCW12061K60JNEA
