Same model may have multiple batches, images only for reference.

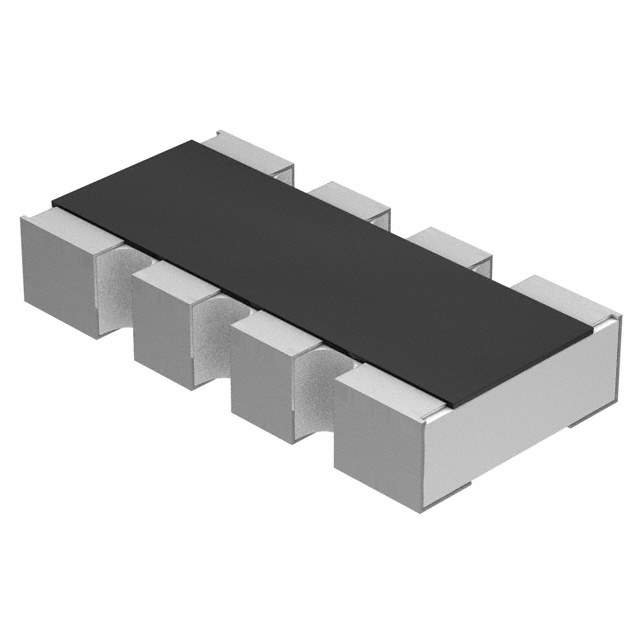

RP104PJ330CS Real Image
Same model may have multiple batches, images only for reference.

RP104PJ330CS

Part No RP104PJ330CS
Manufacturer Samsung
Catalog Resistor Networks, Arrays
Description RES ARRAY 4 RES 33 OHM 0804 / 33 Ohm ±5% 62.5mW Power Per Element Isolated 4 Resistor Network/Array ±200ppm/°C 0804, Convex, Long Side Terminals
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Resistor Networks, Arrays
Mfr Samsung Electro-Mechanics
Series RP
Package Tape & Reel
Circuit Type Isolated
Resistance (Ohms) 33
Tolerance ±5%
Number of Resistors 4
Number of Pins 8
Power Per Element 62.5mW
Temperature Coefficient ±200ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Mounting Type Surface Mount
Package / Case 0804, Convex, Long Side Terminals
Supplier Device Package 0804
Size / Dimension 0.079" L x 0.039" W (2.00mm x 1.00mm)
Height - Seated (Max) 0.018" (0.45mm)
Standard Package 10,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0010
Win Source Part Number 1339539-RP104PJ330CS
Ultra Librarian 3D Model Ultra Librarian RP104PJ330CS CAD Model

Description

The RP104PJ330CS is a resistor network with four isolated resistors from Samsung Electro-Mechanics.

  • Number of Resistors: 4 (isolated)
  • Resistance: 33 ohms
  • Power Rating: 62.5mW
  • Tolerance: ±5%
  • Temperature Coefficient: ±200ppm/°C
  • Package: 0804, Convex, Long Side Terminals
  • Number of Pins: 8
  • Height: 0.018" (0.45mm)
  • Size: 0.079" L x 0.039" W (2.00mm x 1.00mm)
  • Operating Temperature: -55°C to 155°C
  • Standard Package: 10,000
