Same model may have multiple batches, images only for reference.

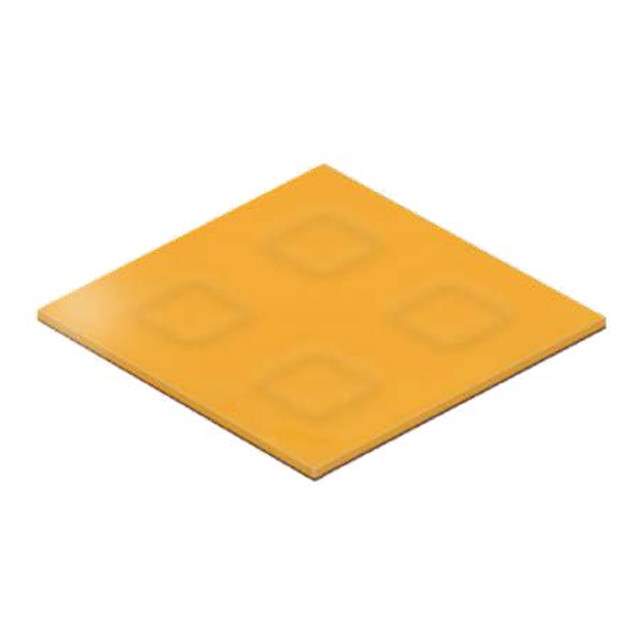

SCA9WT78HAL4W06A1F Real Image
Same model may have multiple batches, images only for reference.

SCA9WT78HAL4W06A1F

Part No SCA9WT78HAL4W06A1F
Manufacturer Samsung
Catalog LED Lighting - White
Description LED LH204A WARM WHITE 2700K SMD  /  LED Lighting series White, Warm 2700K 11.6V 150mA 120° 1414 (3535 Metric)
Datasheet
SCA9WT78HAL4W06A1F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - White
Mfr Samsung Semiconductor, Inc.
Series LH204A
Package Tape & Reel
Product Status Obsolete
Color White, Warm
CCT (K) 2700K
Flux @ 85°C, Current - Test 183lm (165lm ~ 200lm)
Current - Test 150mA
Voltage - Forward (Vf) (Typ) 11.6V
Lumens/Watt @ Current - Test 105 lm/W
CRI (Color Rendering Index) 90
Current - Max 350mA
Viewing Angle 120°
Mounting SMD (SMT)
Package / Case 1414 (3535 Metric)
Supplier Device Package 6-CSP
Dimension 0.138" L x 0.138" W (3.50mm x 3.50mm)
Height - Seated (Max) 0.016" (0.40mm)
Thermal Resistance of Package 2.5°C/W
Other Names 1510-1614,1510-1614,1510-1614-1,1510-1614-2,1510-1614-6
Standard Package 1,000
MSL Level 2A (4 Weeks)
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1240187-SCA9WT78HAL4W06A1F
Ultra Librarian 3D Model Ultra Librarian SCA9WT78HAL4W06A1F CAD Model

Description

The Samsung Semiconductor LH204A is a white and warm color LED lighting module that comes in a tape and reel package.

  • Height Seated (max): 0.016 inches (0.40mm)
  • Standard Package: 1,000 units
  • Mounting: SMD (SMT)
  • Maximum Current: 350mA
  • Viewing Angle: 120 degrees
  • Voltage Forward (Vf): 11.6V
  • Current Test: 150mA
  • CCT: 2700K
  • Flux: 183lm (165lm ~ 200lm) @ 85 degrees Celsius, current-test
  • Lumens/Watt: 105 lm/W @ the current-test
  • CRI: 90
  • Thermal Resistance of the Package: 2.5 degrees Celsius/Watt
  • Package/Case: 1414 (3535 Metric)
  • Supplier Device Package: 6-CSP
  • Dimension: 0.138 inches L x 0.138 inches W (3.50mm x 3.50mm)
  • Manufacturer: Samsung Semiconductor, Inc.
