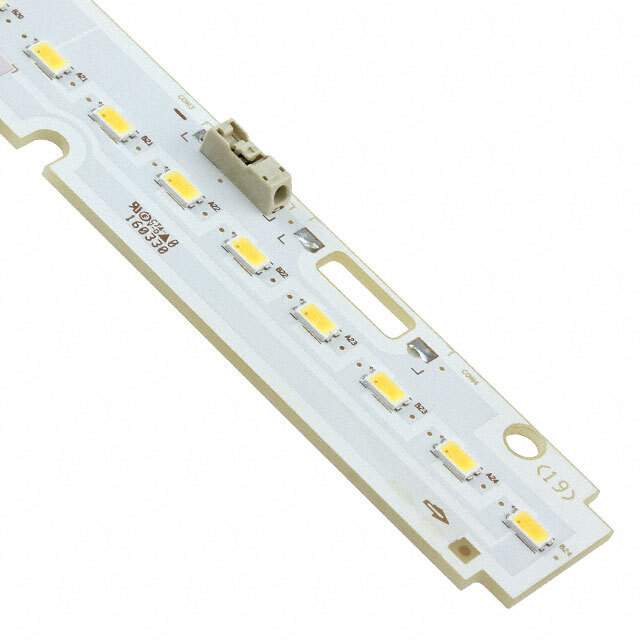

SI-B8V14156SWW Real Image
Same model may have multiple batches, images only for reference.

SI-B8V14156SWW

Part No SI-B8V14156SWW
Manufacturer Samsung
Catalog LED Lighting - COBs, Engines, Modules
Description LED SLIM 3000K 2180LM FRONT WIRE / LED Lighting COBs Engines Modules LED Module series White, Warm Linear Light Strip
Datasheet
SI-B8V14156SWW Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - COBs, Engines, Modules, Strips
Mfr Samsung Semiconductor, Inc.
Series LT-S562F
Package Tray
Product Status Not For New Designs
Type LED Module
Color White, Warm
CCT (K) 3000K 3-Step MacAdam Ellipse
Configuration Linear Light Strip
Luminous Flux @ Current/Temperature 2180lm (Typ)
Current - Test 800mA
Temperature - Test 50°C
Voltage - Forward (Vf) (Typ) 17.6V
Lumens/Watt @ Current - Test 155 lm/W
Current - Max 1.44A
CRI (Color Rendering Index) 80
Viewing Angle 115°
Features With Connector
Dimension 559.70mm L x 23.80mm W
Height 5.80mm
Lens Type Flat
Base Product Number SI-B8
Other Names 1510-1397,SI-B8V14156SWW
Standard Package 224
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1240394-SI-B8V14156SWW
Ultra Librarian 3D Model Ultra Librarian SI-B8V14156SWW CAD Model

Description

The Samsung Semiconductor LED module SI-B8V14156SWW is a linear light strip configuration that emits warm white color light.

  • Voltage-Forward: 17.6V
  • Current-Test: 800mA
  • CCT Range: 3000K 3-Step MacAdam Ellipse
  • Lens Type: Flat
  • Dimension: 559.70mm L x 23.80mm W
  • Package: Tray
  • Standard Package: 224 units
  • For New Designs: No
  • Luminous Flux (Typ): 2180lm
