Same model may have multiple batches, images only for reference.

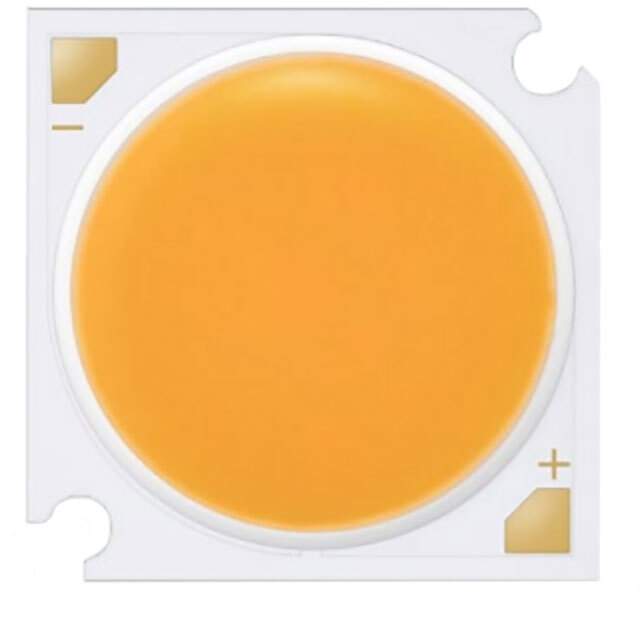

SPHWHAHDNK25YZT3DB Real Image
Same model may have multiple batches, images only for reference.

SPHWHAHDNK25YZT3DB

Part No SPHWHAHDNK25YZT3DB
Manufacturer Samsung
Catalog LED Lighting - COBs, Engines, Modules
Description LED COB WHT LC040D 4000K 80CRI  /  LED Lighting COBs Engines Modules Chip On Board (COB) series White, Neutral Square
Datasheet
SPHWHAHDNK25YZT3DB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - COBs, Engines, Modules, Strips
Mfr Samsung Semiconductor, Inc.
Series COB D Gen2
Type Chip On Board (COB)
Color White, Neutral
CCT (K) 4000K 3-Step MacAdam Ellipse
Configuration Square
Luminous Flux @ Current/Temperature 6084lm (Typ)
Current - Test 1.08A
Temperature - Test 85°C
Voltage - Forward (Vf) (Typ) 34V
Lumens/Watt @ Current - Test 166 lm/W
Current - Max 2.16A
CRI (Color Rendering Index) 80
Viewing Angle 115°
Dimension 28.00mm L x 28.00mm W
Height 1.50mm
Light Emitting Surface (LES) 22.00mm Dia
Lens Type Flat
Base Product Number SPHWHAHDNK25
Other Names 1510-SPHWHAHDNK25YZT3DB
Standard Package 160
MSL Level 2A (4 Weeks)
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1241561-SPHWHAHDNK25YZT3DB
Ultra Librarian 3D Model Ultra Librarian SPHWHAHDNK25YZT3DB CAD Model

Description

The Samsung COB D Gen2 chip on board (COB) is an excellent electronic component for lighting applications that require a high luminous flux.

  • Shape: Square
  • Viewing Angle: 115 degrees
  • Lens Type: Flat
  • Color: White, neutral
  • CCT: 4000K 3-Step MacAdam Ellipse
  • CRI: 80
  • Current Rating: 2.16A
  • Forward Voltage: 34V (Typ)
  • Light Emitting Surface: 22.00mm diameter
  • Height: 1.50mm
  • Luminous Flux @ Current/Temperature: 6084lm (Typ)
  • Lumens/Watt @ Current - Test: 166 lm/W
