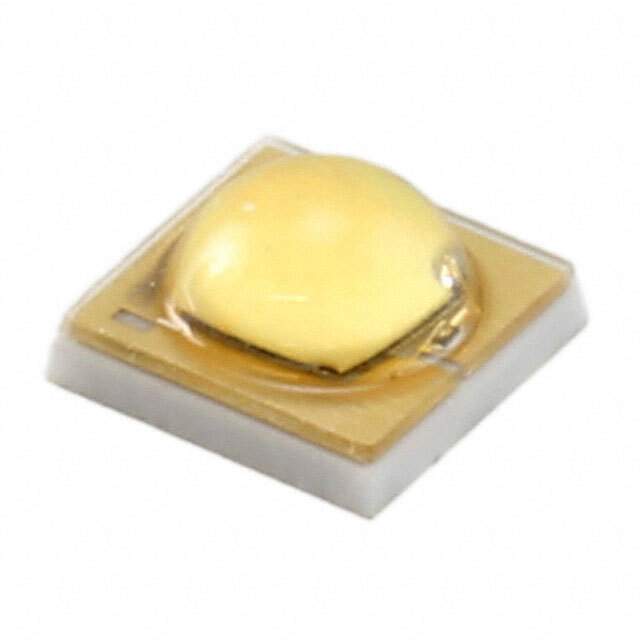

SPHWHTL3D303E6QTM2 Real Image
Same model may have multiple batches, images only for reference.

SPHWHTL3D303E6QTM2

Part No SPHWHTL3D303E6QTM2
Manufacturer Samsung
Catalog LED Lighting - White
Description LED LH351A COOL WHITE 5700K 2SMD  /  LED Lighting series White, Cool 5700K 2.95V 350mA 125° 1414 (3535 Metric)
Datasheet
SPHWHTL3D303E6QTM2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - White
Mfr Samsung Semiconductor, Inc.
Series LH351A
Product Status Obsolete
Color White, Cool
CCT (K) 5700K
Flux @ 25°C, Current - Test 150lm (140lm ~ 160lm)
Current - Test 350mA
Voltage - Forward (Vf) (Typ) 2.95V
Lumens/Watt @ Current - Test 145 lm/W
CRI (Color Rendering Index) 70
Current - Max 1.5A
Viewing Angle 125°
Mounting SMD (SMT)
Package / Case 1414 (3535 Metric)
Supplier Device Package 3535
Dimension 0.138" L x 0.138" W (3.50mm x 3.50mm)
Height - Seated (Max) 0.080" (2.02mm)
Thermal Resistance of Package 4°C/W
Other Names 1510-1067-2,1510-1067-1,1510-1067-6
Standard Package 1,000
MSL Level 2A (4 Weeks)
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1240148-SPHWHTL3D303E6QTM2
Ultra Librarian 3D Model Ultra Librarian SPHWHTL3D303E6QTM2 CAD Model

Description

The Samsung LH351A LED is a high-performance LED designed for use in LED lighting applications.

  • Color: white, cool
  • Viewing Angle: 125 degrees
  • Forward Voltage: 2.95V
  • Maximum Current: 1.5A
  • Thermal Resistance: 4 degrees Celsius per watt
  • Package: 1414 (3535 metric) SMD (SMT)
  • CCT: 5700K @ a test current of 350mA
  • Flux: 150lm (140lm ~ 160lm) @ 25 degrees Celsius
  • Lumens per Watt: 145 lm/W @ current test
  • Color Rendering Index (CRI): 70
  • Status: This LED is obsolete.
