Same model may have multiple batches, images only for reference.

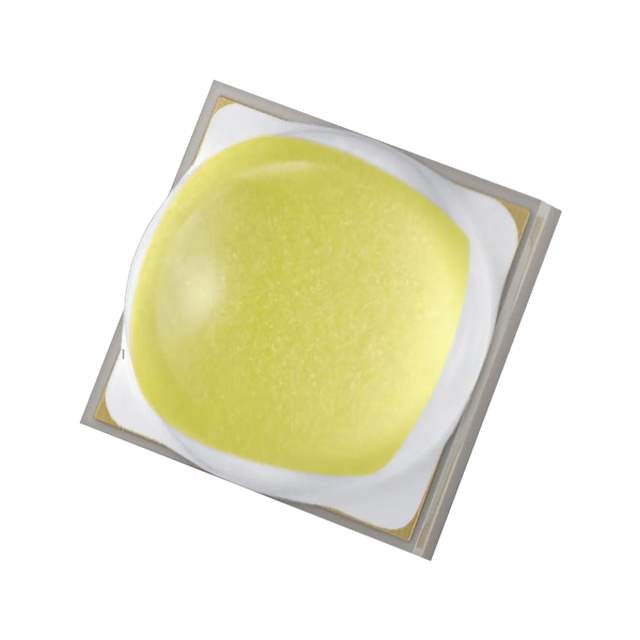

SPHWHTL3DA0GF4UPN6 Real Image
Same model may have multiple batches, images only for reference.

SPHWHTL3DA0GF4UPN6

Part No SPHWHTL3DA0GF4UPN6
Manufacturer Samsung
Catalog LED Lighting - White
Description HIGH POWER LED SERIES 3535 CERAM / LED Lighting series White, Warm 3500K 3V 1.05A 128° 1414 (3535 Metric)
Datasheet
SPHWHTL3DA0GF4UPN6 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - White
Mfr Samsung Semiconductor, Inc.
Series LH351D
Color White, Warm
CCT (K) 3500K
Flux @ 85°C, Current - Test 330lm (300lm ~ 360lm)
Current - Test 1.05A
Voltage - Forward (Vf) (Typ) 3V
Lumens/Watt @ Current - Test 105 lm/W
CRI (Color Rendering Index) 90
Current - Max 3A
Viewing Angle 128°
Mounting SMD (SMT)
Package / Case 1414 (3535 Metric)
Supplier Device Package 3535
Dimension 0.138" L x 0.138" W (3.50mm x 3.50mm)
Height - Seated (Max) 0.097" (2.46mm)
Thermal Resistance of Package 2.2°C/W
Base Product Number SPHWHTL3
Other Names 1510-2330-2,1510-2330-1,SPHWHTL3DA0GF4UPN6,1510-2330-6
Standard Package 800
MSL Level 2A (4 Weeks)
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1239950-SPHWHTL3DA0GF4UPN6
Ultra Librarian 3D Model Ultra Librarian SPHWHTL3DA0GF4UPN6 CAD Model

Description

The SPHWHTL3DA0GF4UPN6 is a white LED lighting component manufactured by Samsung Semiconductor, Inc.

  • Series: LH351D
  • Color Temperature: 3500K
  • Viewing Angle: 128°
  • Forward Voltage: 3V
  • Thermal Resistance of Package: 2.2°C/W
  • Case: 1414 (3535 Metric)
  • Maximum Current: 3A
  • Test Current: 1.05A
  • Luminous Flux @ 85°C: 330lm (300lm ~ 360lm)
  • Lumens/Watt @ Test Current: 105 lm/W
  • MSL Level: 2A (4 Weeks)
  • HTSUS: 8541.41.0000
