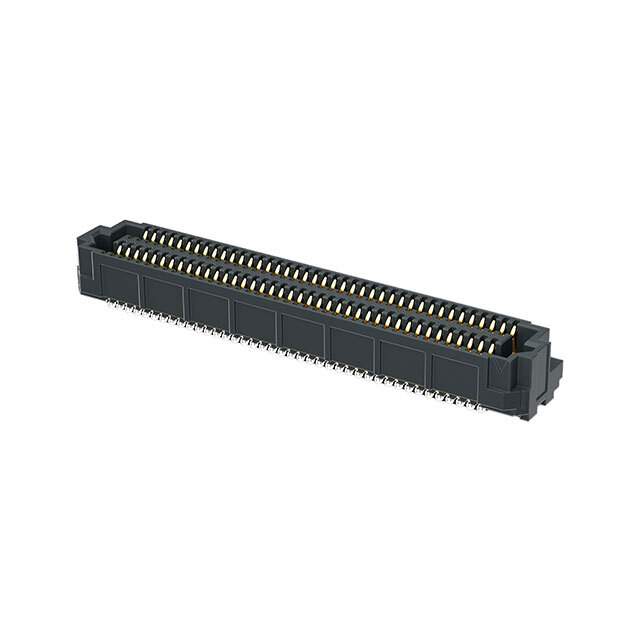

ADF6-40-03.5-L-4-2-A-TR Real Image
Same model may have multiple batches, images only for reference.

ADF6-40-03.5-L-4-2-A-TR

Part No ADF6-40-03.5-L-4-2-A-TR
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN 0.635MM SKT 40POS SMD / 160 Position Connector High Density Array, Female Surface Mount Gold
Datasheet
ADF6-40-03.5-L-4-2-A-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Samtec Inc.
Series AcceleRate® ADF6
Package Strip
Connector Type High Density Array, Female
Number of Positions 160
Pitch 0.025" (0.64mm)
Number of Rows 4
Mounting SMD (SMT)
Features Board Guide
Contact Finish Gold
Contact Finish Thickness 10.0µin (0.25µm)
Mated Stacking Heights 5mm
Height Above Board 0.144" (3.66mm)
Base Product Number ADF6-40
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 612-ADF6-40-03.5-L-4-2-A-TR
Standard Package 700
Win Source Part Number 1055425-ADF6-40-03.5-L-4-2-A-TR
Ultra Librarian 3D Model Ultra Librarian ADF6-40-03.5-L-4-2-A-TR CAD Model

Description

The ADF6-40-03.5-L-4-2-A-TR is a high-density array connector manufactured by Samtec Inc.

  • Series: The product is part of the AcceleRate ADF6 series and is widely used in rectangular connectors, edge type, mezzanine (board to board) applications.
  • Application: The product is perfect for applications that require high-density interconnects and is equipped with 160 positions.
  • Package: The product is available in strip packaging and is perfect for SMD (SMT) mounting.
  • Feature: The product is known for its high reliability and is perfect for applications that require high-speed data transfer.
  • Alias: The product is also known as 1055425-ADF6-40-03.5-L-4-2-A-TR or 612-ADF6-40-03.5-L-4-2-A-TR.
