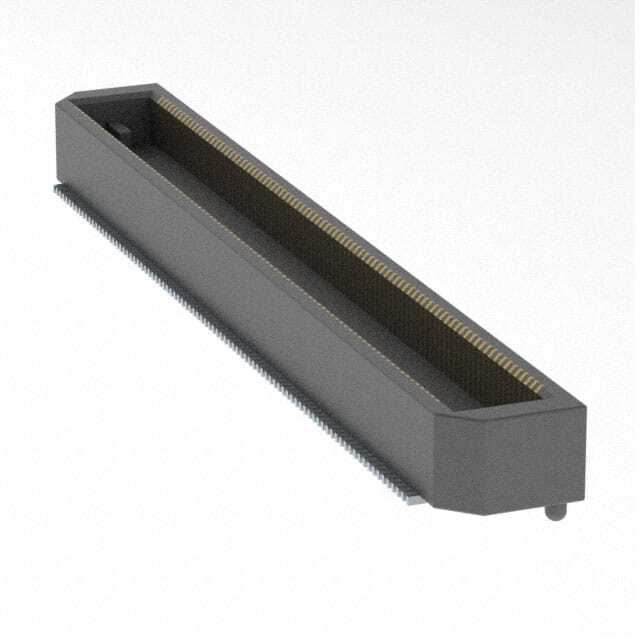

BTH-090-01-L-D-A

Name: BTH-090-01-L-D-A
Brand: Samtec Inc.
SKU: 864851
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	BTH-090-01-L-D-A
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HDR 180POS SMD GOLD / 180 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
Datasheet	BTH-090-01-L-D-A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Samtec Inc.
Series	BTH
Package	Tray
Product Status	Active
Connector Type	Header, Outer Shroud Contacts
Number of Positions	180
Pitch	0.020" (0.50mm)
Number of Rows	2
Mounting Type	Surface Mount
Features	Board Guide
Contact Finish	Gold
Contact Finish Thickness	10.0µin (0.25µm)
Mated Stacking Heights	5mm
Height Above Board	0.168" (4.27mm)
Base Product Number	BTH-090
Standard Package	56 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
California Prop 65	Warning Information
Win Source Part Number	864851-BTH-090-01-L-D-A
Ultra Librarian 3D Model	Ultra Librarian BTH-090-01-L-D-A CAD Model

Alternative Products

Description

The 864851-BTH-090-01-L-D-A is a rectangular connector array from the BTH series by Samtec Inc.

Series: BTH
Connector Type: Board-to-Board
Number of Positions: 180
Pitch: 0.020" (0.50mm)
Connector Type: Header
Contacts: Outer Shroud
Mounting Type: Surface Mount
Height Above Board: 0.168" (4.27mm)
Contact Finish: Gold
Contact Finish Thickness: 10.0µin (0.25µm)
Package: Tray
Package Quantity: 56
Product Status: Active
REACH: Unaffected
