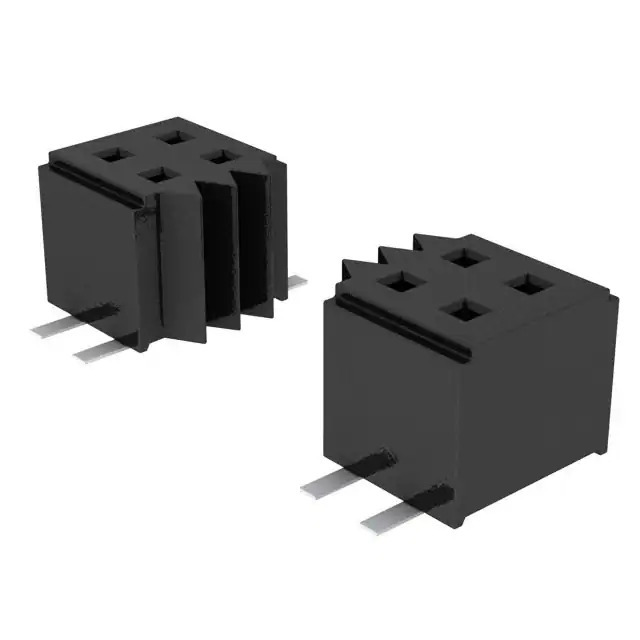

Same model may have multiple batches, images only for reference.

CLM-109-02-L-D-BE-K

Name: CLM-109-02-L-D-BE-K
Brand: Samtec Inc.
SKU: 1354410
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	CLM-109-02-L-D-BE-K
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN RCPT 18POS 0.039 GOLD SMD / 18 Position Receptacle, Bottom Entry Connector 0.039" (1.00mm) Surface Mount Gold
Datasheet	CLM-109-02-L-D-BE-K Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	CLM
Package	Bulk
Product Status	Active
Connector Type	Receptacle, Bottom Entry
Contact Type	Female Socket
Style	Board to Board
Number of Positions	18
Number of Positions Loaded	All
Pitch - Mating	0.039" (1.00mm)
Number of Rows	2
Row Spacing - Mating	0.039" (1.00mm)
Mounting Type	Surface Mount
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Insulation Color	Black
Insulation Height	0.084" (2.14mm)
Contact Length - Post	-
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Mated Stacking Heights	-
Ingress Protection	-
Features	Pick and Place
Current Rating (Amps)	2.8A per Contact
Voltage Rating	-
Applications	-
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Phosphor Bronze
Contact Finish Thickness - Post	-
Base Product Number	CLM-109
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1354410-CLM-109-02-L-D-BE-K
Ultra Librarian 3D Model	Ultra Librarian CLM-109-02-L-D-BE-K CAD Model

Alternative Products

Description

The CLM-109-02-L-D-BE-K is a rectangular connector from Samtec Inc.

Series: CLM
Base Product Number: CLM-109
Mounting Type: Surface Mount
Connector Type: Receptacle, Bottom Entry
Pitch: 0.039" (1.00mm)
Number of Positions: 18
Number of Rows: 2
Operating Temperature: -55°C to 125°C
Application: Board-to-Board
Feature: Pick and Place
RoHS Compliant: Yes
REACH Status: Unaffected
Current Rating: 2.8A per contact
Contact Finish: Gold-Plated
