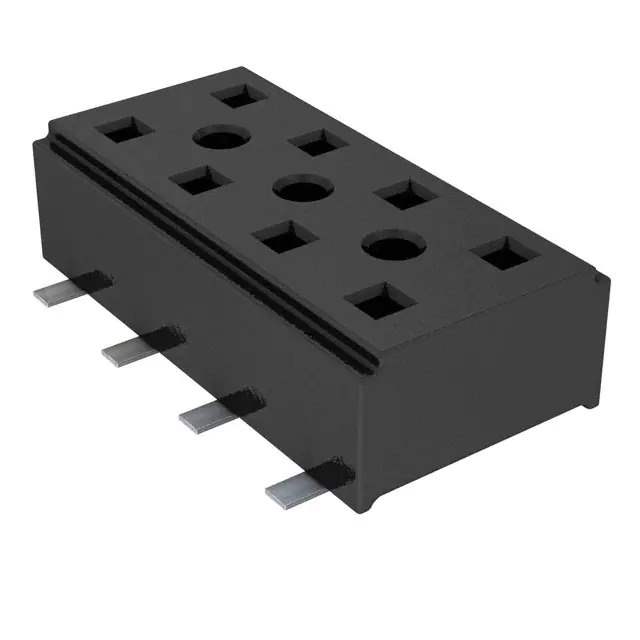

The 866841-CLT-104-02-L-D-BE-A-K is a rectangular connector from the CLT series by Samtec Inc.

• Series: CLT
• Connector Type: Receptacle
• Entry: Bottom Entry
• Features: Board Guide, Pick and Place
• Positions: 8
• Rows: 2
• Positions Loaded: All
• Termination: Solder
• Fastening Type: Push-Pull
• Contact Material: Phosphor Bronze
• Contact Finish (Mating): Gold, 10.0μin
• Contact Finish (Post): Tin
• Insulation Material: Black Liquid Crystal Polymer (LCP)
• Height: 0.083" (2.10mm)
• Pitch: 0.079" (2.00mm)
• Temperature Range: -55°C to 125°C
• Current Rating: 4.1A per contact
• Package: Tube
• Standard Package Quantity: 72 pcs
