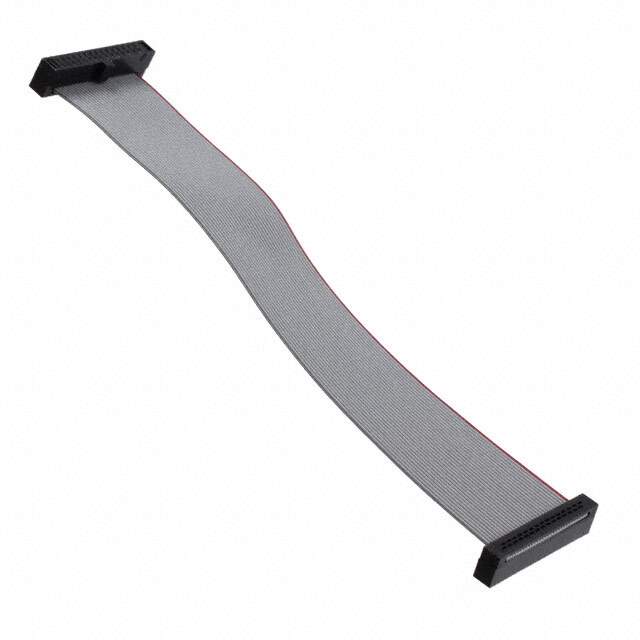

FFSD-15-D-11.00-01-N-R Real Image
Same model may have multiple batches, images only for reference.

FFSD-15-D-11.00-01-N-R

Part No FFSD-15-D-11.00-01-N-R
Manufacturer Samtec Inc.
Catalog Rectangular Cable Assemblies
Description .050 X .050 C.L. FEMALE IDC ASSE / 30 Position Cable Assembly Rectangular Socket to Socket, Reversed 0.917' (279.40mm, 11.00")
Datasheet
FFSD-15-D-11.00-01-N-R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Cable Assemblies>Rectangular Cable Assemblies
Mfr Samtec Inc.
Series Tiger Eye™ FFSD
Package Bulk
Connector Type Socket to Socket, Reversed
Number of Positions 30
Number of Rows 2
Pitch - Connector 0.050" (1.27mm)
Pitch - Cable 0.025" (0.64mm)
Length 0.917' (279.40mm, 11.00")
Features Polarizing Key, Reverse Wiring
Color Gray, Ribbon
Shielding Unshielded
Cable Termination IDC
Contact Finish Gold
Contact Finish Thickness 10.0µin (0.25µm)
Base Product Number FFSD-15
MSL Level Not Applicable
ECCN EAR99
HTSUS 8544.42.9090
Standard Package 1
Win Source Part Number 1183154-FFSD-15-D-11.00-01-N-R
Ultra Librarian 3D Model Ultra Librarian FFSD-15-D-11.00-01-N-R CAD Model

Description

This gray ribbon cable assembly is a part of the Tiger Eye™ FFSD series and has 30 positions.

  • Series: Tiger Eye™ FFSD
  • Positions: 30
  • Length: 0.917 feet (279.40mm, 11.00 inches)
  • Connector Pitch: 0.050 inches (1.27mm)
  • Cable Pitch: 0.025 inches (0.64mm)
  • Shielded: No
  • Termination: IDC
  • Connector Type: Socket to Socket
  • Configuration: Reversed
  • Contact Finish: Gold
  • Contact Finish Thickness: 10.0μin (0.25μm)
  • Polarizing Key: Yes
  • Wiring: Reverse
  • Packaging: Bulk
