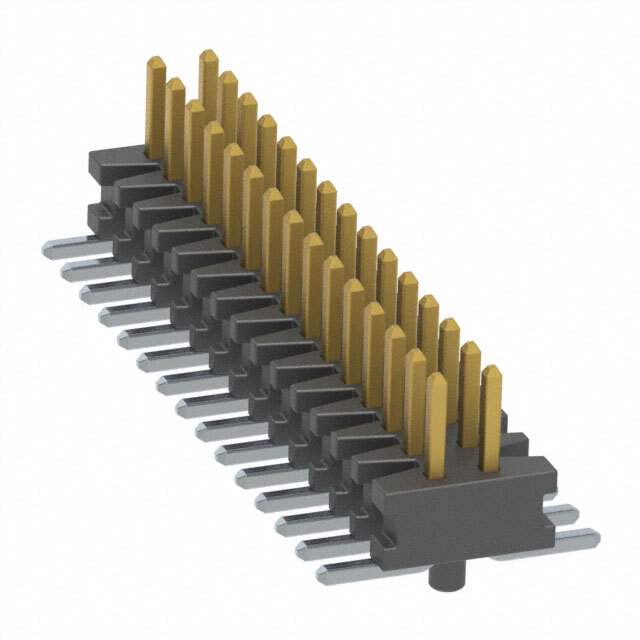

Same model may have multiple batches, images only for reference.

FTMH-115-02-FM-DV-A-P-TR

Name: FTMH-115-02-FM-DV-A-P-TR
Brand: Samtec Inc.
SKU: 133932
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	FTMH-115-02-FM-DV-A-P-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	1MM MICRO TERMINAL STRIPS
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Samtec Inc.
Packaging	Reel - TR
Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.039" (1.00mm)
Style	Board to Board
Shrouding	Unshrouded
Number of Positions	30
Number of Positions Loaded	All
Number of Rows	2
Row Spacing - Mating	0.039" (1.00mm)
Mounting	SMD (SMT)
Termination	Solder
Contact Length - Mating	0.075" (1.90mm)
Insulation Height	0.059" (1.50mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	3μin (0.08μm)
Contact Finish - Post	Tin
Insulation Material	Liquid Crystal Polymer (LCP)
Features	Board Guide, Pick and Place
Temperature Range - Operating	-55°C to 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating	2.8A per Contact
Win Source Part Number	133932-FTMH-115-02-FM-DV-A-P-TR
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian FTMH-115-02-FM-DV-A-P-TR CAD Model

Alternative Products

Description

The Samtec Inc. 133932-FTMH-115-02-FM-DV-A-P-TR is a header connector with 30 male pin contacts, designed for board-to-board connection.

Number of Contacts: 30 Male Pins
Connection Type: Board-to-Board
Positions Loaded: All
Insulation Material: Liquid Crystal Polymer (LCP)
Flammability Rating: UL94 V-0
Pitch-Mating: 0.039 inches (1.00mm)
Contact Finish-Mating: Gold, 3μin (0.08μm)
Type: Unshrouded
Row Spacing-Mating: 0.039 inches (1.00mm)
Mounting Type: SMD (SMT)
Temperature Range: -55°C to 125°C
Current Rating: 2.8A per contact
