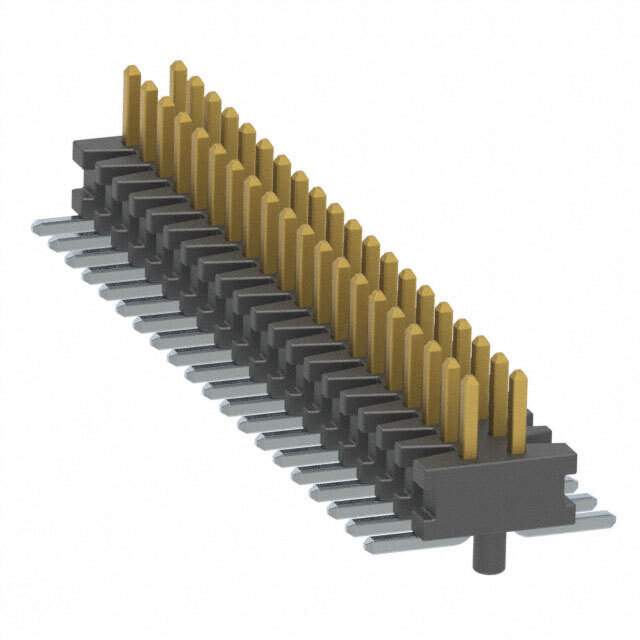

FTMH-120-03-F-DV-A-P-TR Real Image
Same model may have multiple batches, images only for reference.

FTMH-120-03-F-DV-A-P-TR

Part No FTMH-120-03-F-DV-A-P-TR
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description 1MM MICRO TERMINAL STRIPS / Conn Unshrouded Header HDR 40 POS 1mm Solder ST SMD T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Samtec Inc.
Series FTMH
Packaging Reel package
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.039" (1.00mm)
Style Board to Board
Shrouding Unshrouded
Number of Positions 40
Number of Positions Loaded All
Number of Rows 2
Row Spacing - Mating 0.039" (1.00mm)
Mounting SMD
Termination Solder
Contact Length - Mating 0.065" (1.65mm)
Insulation Height 0.059" (1.50mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 3μin (0.08μm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Liquid Crystal Polymer (LCP)
Features Board Guide, Pick and Place
Operating Temperature Range -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating 2.8A per Contact
Win Source Part Number 774816-FTMH-120-03-F-DV-A-P-TR
Popularity Medium
Supply and Demand Status Balance
Family Name FTMH
Introduction Date March 22, 2001
ECCN EAR99
Country of Origin China, Costa Rica, Malaysia, Singapore, Taiwan, United States of America, Vietnam
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian FTMH-120-03-F-DV-A-P-TR CAD Model

Description

The 774816-FTMH-120-03-F-DV-A-P-TR is a header connector used in board to board applications.

  • Positions: 40
  • Loaded: Male Pins
  • Package: Reel
  • Connector Type: Header
  • Contact Material: Phosphor Bronze
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Current Rating: 2.8A per contact
  • Pitch-Mating: 0.039" (1.00mm)
  • Contact Length for Mating: 0.065" (1.65mm)
  • Manufacturer: Samtec Inc.
