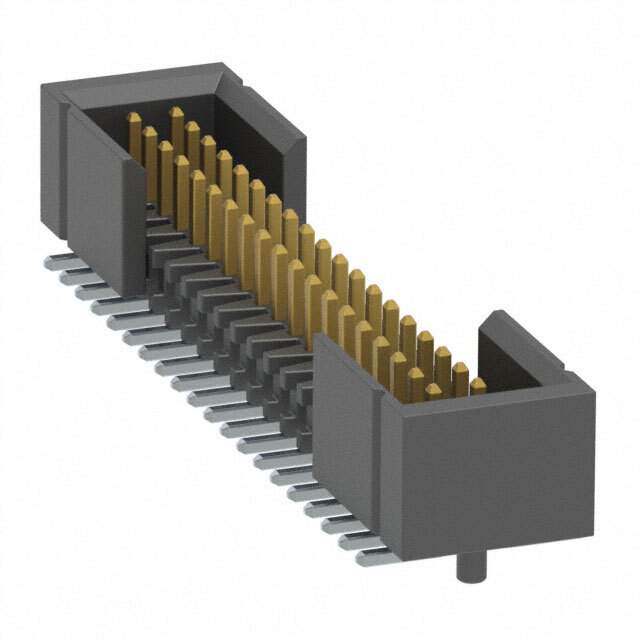

Same model may have multiple batches, images only for reference.

FTMH-120-03-F-DV-ES-A-TR

Name: FTMH-120-03-F-DV-ES-A-TR
Brand: Samtec Inc.
SKU: 774817
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	FTMH-120-03-F-DV-ES-A-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	1MM MICRO TERMINAL STRIPS / Conn Shrouded Header (4 Sides) HDR 40 POS 1mm Solder ST SMD T/R
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Samtec Inc.
Series	FTMH
Packaging	Reel package
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.039" (1.00mm)
Style	Board to Board
Shrouding	Unshrouded
Number of Positions	40
Number of Positions Loaded	All
Number of Rows	2
Row Spacing - Mating	0.039" (1.00mm)
Mounting	SMD
Termination	Solder
Contact Length - Mating	0.065" (1.65mm)
Insulation Height	0.059" (1.50mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	3μin (0.08μm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Features	Board Guide, End Shrouds
Operating Temperature Range	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating	2.8A per Contact
Win Source Part Number	774817-FTMH-120-03-F-DV-ES-A-TR
Popularity	Medium
Supply and Demand Status	Limited
Family Name	FTMH
Introduction Date	March 22, 2001
ECCN	EAR99
Country of Origin	China, Costa Rica, Malaysia, Singapore, Taiwan, United States of America, Vietnam
Halogen Free	Compliant
Estimated EOL Date	2027
Ultra Librarian 3D Model	Ultra Librarian FTMH-120-03-F-DV-ES-A-TR CAD Model

Alternative Products

Description

The FTMH series header connector from Samtec Inc. is a board-to-board connector with 40 positions and 2 rows.

Pitch: 0.039" (1.00mm)
Features: Board Guide, End Shrouds
Contact Type: Male Pin
Contact Finish: Gold
Contact Finish Thickness: 3μin (0.08μm)
Mounting: SMD
Current Rating: 2.8A per contact
Insulation Material: Liquid Crystal Polymer (LCP)
Flammability Rating: UL94 V-0
