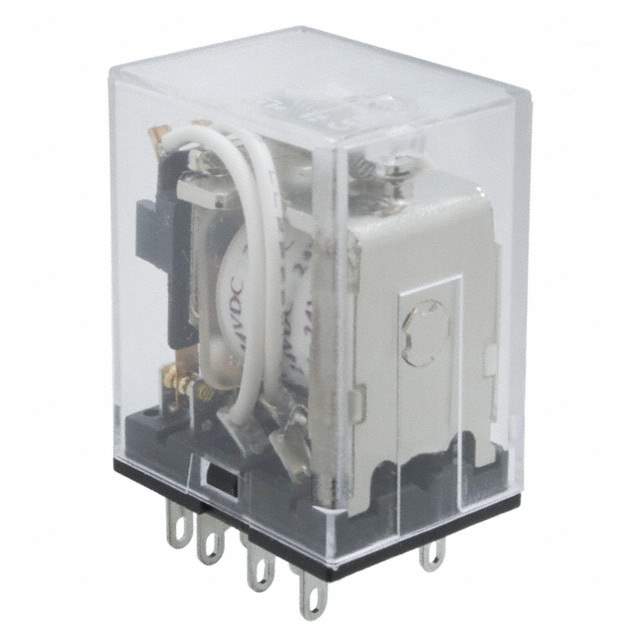

SZR-MY4-1-DC24V Real Image
Same model may have multiple batches, images only for reference.

SZR-MY4-1-DC24V

Part No SZR-MY4-1-DC24V
Manufacturer Honeywell
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE 4PDT 3A 24V / General Purpose Relay 4PDT (4 Form C) 24VDC Coil Socketable
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr Honeywell Sensing and Productivity Solutions
Series SZR-MY
Package Bulk
Mounting Type Socketable
Coil Voltage 24VDC
Contact Form 4PDT (4 Form C)
Contact Rating (Current) 3 A
Switching Voltage 250VAC, 125VDC - Max
Coil Current 36.9 mA
Coil Type Non Latching
Termination Style Plug In
Must Operate Voltage 18 VDC
Must Release Voltage 2.4 VDC
Operate Time 20 ms
Release Time 20 ms
Contact Material Silver (Ag)
Relay Type General Purpose
Coil Resistance 650 Ohms
Base Product Number SZR-MY4
Other Names 480-5212,SZR-MY4-1-DC24V,SZRMY41DC24V
Standard Package 20
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 1237305-SZR-MY4-1-DC24V
Ultra Librarian 3D Model Ultra Librarian SZR-MY4-1-DC24V CAD Model

Description

The Honeywell SZR-MY4-1-DC24V Relay is a power relay designed for over 2 amps of power.

  • Termination Style: Plug-In
  • Package: Bulk
  • Contact Form: 4PDT (4 Form C)
  • Contact Material: Silver (Ag)
  • Coil Voltage: 24VDC
  • Contact Rating: 3A
  • Switching Voltage: 250VAC and 125VDC
  • Relay Type: General Purpose
  • Coil Type: Non-Latching
