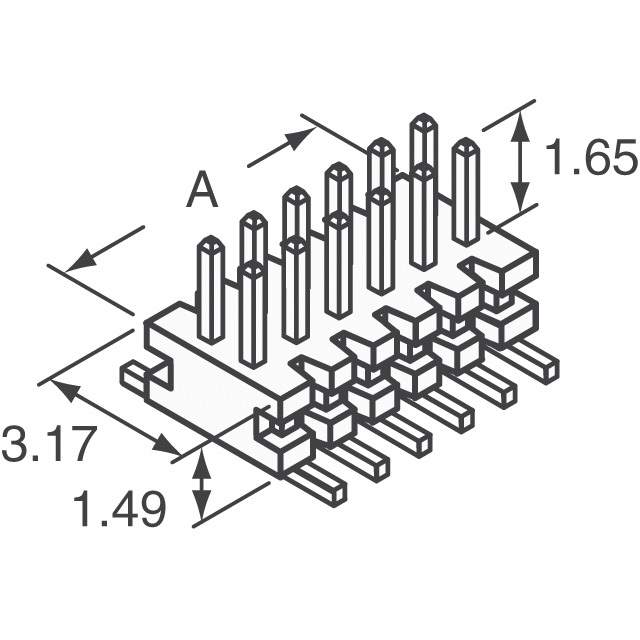

Same model may have multiple batches, images only for reference.

FTMH-120-03-L-DV

Name: FTMH-120-03-L-DV
Brand: Samtec Inc.
SKU: 1035687
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	FTMH-120-03-L-DV
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER SMD 40POS 1MM / Connector Header Surface Mount 40 position 0.039" (1.00mm)
Datasheet	FTMH-120-03-L-DV Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Samtec Inc.
Series	FTMH
Package	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.039" (1.00mm)
Number of Positions	40
Number of Rows	2
Row Spacing - Mating	0.039" (1.00mm)
Number of Positions Loaded	All
Style	Board to Board
Shrouding	Unshrouded
Mounting	SMD (SMT)
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.065" (1.65mm)
Insulation Height	0.059" (1.50mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	2.8A per Contact
Base Product Number	FTMH-120
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	SAM1131-20
Standard Package	1
Win Source Part Number	1035687-FTMH-120-03-L-DV
Ultra Librarian 3D Model	Ultra Librarian FTMH-120-03-L-DV CAD Model

Alternative Products

Description

The FTMH series male pin header is a rectangular connector designed for board-to-board connections.

Positions: 40
Rows: Two
Pitch: 0.039 inches (1.00 mm)
Insulation Material: Liquid Crystal Polymer (LCP)
Contact Material: Phosphor Bronze
Termination: Soldering
Fastening Type: Push-Pull
Contact Type: Male Pin
Positions Loaded: All
Features: None
Voltage Rating: Unspecified Value
Contact Finish (Mating): Gold, 10.0 µin (0.25 µm)
Post Contact Finish: Tin
Color: Black
Contact Shape: Square
Insulation Height: 0.059 inches (1.50 mm)
Temperature Range: -55°C to 125°C
REACH: Unaffected
Packaging: Bulk
Standard Package: One
