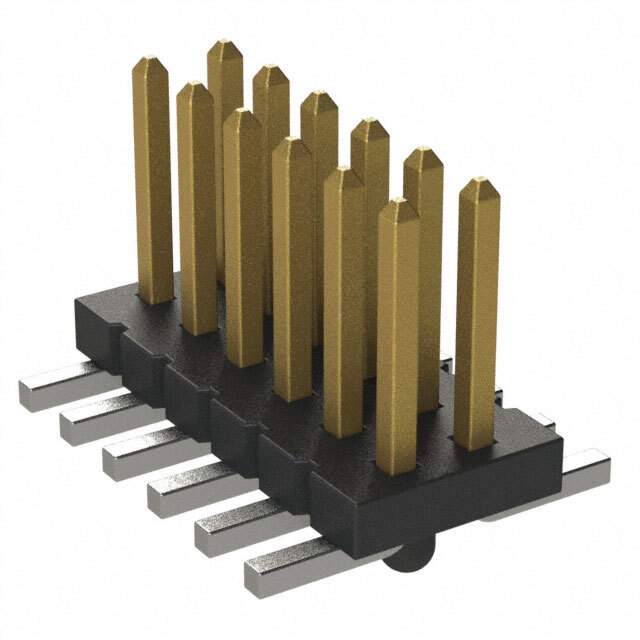

Same model may have multiple batches, images only for reference.

FTS-106-04-F-DV-A

Name: FTS-106-04-F-DV-A
Brand: Samtec Inc.
SKU: 982170
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	FTS-106-04-F-DV-A
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER SMD 12POS 1.27MM / Connector Header Surface Mount 12 position 0.050" (1.27mm)
Datasheet	FTS-106-04-F-DV-A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Samtec Inc.
Series	FTS
Package	Tube
Connector Type	Header, Cuttable
Contact Type	Male Pin
Pitch - Mating	0.050" (1.27mm)
Number of Positions	12
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting	SMD (SMT)
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.150" (3.81mm)
Insulation Height	0.034" (0.86mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	3.00µin (0.076µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Features	Board Guide
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3.4A per Contact
Base Product Number	FTS-106
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Standard Package	76
Win Source Part Number	982170-FTS-106-04-F-DV-A
Ultra Librarian 3D Model	Ultra Librarian FTS-106-04-F-DV-A CAD Model

Alternative Products

Description

The Samtec Inc. FTS-106-04-F-DV-A is a male pin header connector that is ideal for use in board-to-board or cable electronic applications.

Series: FTS series
Positions Loaded: 12 positions
Rows: 2-row configuration
Contact Material: phosphor bronze
Contact Finish-Mating: gold contact finish-mating
Contact Finish Thickness-Mating: 3.00μin contact finish thickness-mating
Current Rating: 3.4A per contact
Insulation Material: liquid crystal polymer (LCP)
