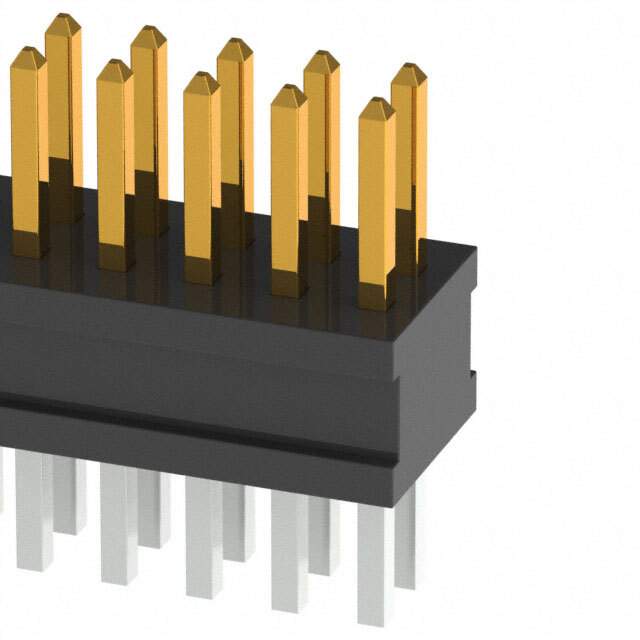

Same model may have multiple batches, images only for reference.

FTSH-108-02-F-D

Name: FTSH-108-02-F-D
Brand: Samtec Inc.
SKU: 1204080
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	FTSH-108-02-F-D
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 16POS 1.27MM / Connector Header Through Hole 16 position 0.050" (1.27mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Samtec Inc.
Series	FTSH
Package	Tube
Connector Type	Header, Cuttable
Contact Type	Male Pin
Pitch - Mating	0.050" (1.27mm)
Number of Positions	16
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.075" (1.90mm)
Contact Length - Post	0.090" (2.29mm)
Overall Contact Length	0.265" (6.73mm)
Insulation Height	0.099" (2.51mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	3.00µin (0.076µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3.4A per Contact
Base Product Number	FTSH-108
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8536.69.4040
Standard Package	1
Win Source Part Number	1204080-FTSH-108-02-F-D
Ultra Librarian 3D Model	Ultra Librarian FTSH-108-02-F-D CAD Model

Description

The FTSH header connector is a cuttable connector with 16 positions and two rows.

Positions: 16
Rows: 2
Contact Material: Phosphor Bronze
Contact Finish (Mating): Gold
Contact Finish (Post): Tin
Current Rating: 3.4A per contact
Temperature Range: -55°C ~ 125°C
Application: Board-to-Board or Cable Connection
Pitch: 0.050" (1.27mm)
Package: Tube
