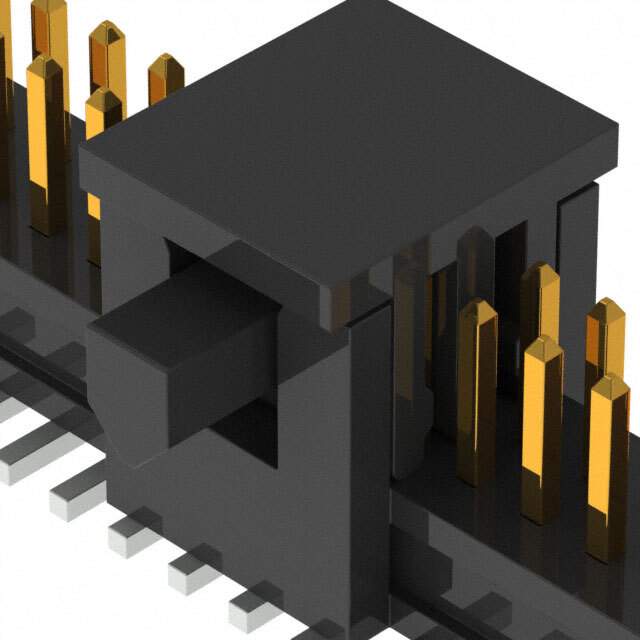

FTSH-117-01-L-DV-K-P-TR

Name: FTSH-117-01-L-DV-K-P-TR
Brand: Samtec Inc.
SKU: 805516
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	FTSH-117-01-L-DV-K-P-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER SMD 34POS 1.27MM
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Samtec Inc.
Packaging	Reel
Connector Type	Header, Cuttable
Contact Type	Male Pin
Pitch - Mating	0.050" (1.27mm)
Number of Positions	34
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting Style	SMD
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.120" (3.05mm)
Insulation Height	0.099" (2.51mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0μin (0.25μm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Features	Keying Shroud, Pick and Place
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3.4A per Contact
Manufacturer Pack Quantity	450
MSL Level	1 (Unlimited)
Popularity	Medium
Supply and Demand Status	Balance
Win Source Part Number	805516-FTSH-117-01-L-DV-K-P-TR
Ultra Librarian 3D Model	Ultra Librarian FTSH-117-01-L-DV-K-P-TR CAD Model

Alternative Products

Description

The Samtec Inc. FTSH-117-01-L-DV-K-P-TR is a cuttable header connector with a total of 34 positions loaded with male pins.

Shroud keying: Yes
Mounting style: Pick and place
Connection style: Board to board or cable
Mating pitch: 0.050 inches
Mating contact finish: Gold (10.0μin)
Post contact finish: Tin
Insulation material: Liquid crystal polymer (LCP)
Height: 0.099 inches
Voltage rating: Not specified
Current rating: 3.4A per contact
Operating temperature range: -55°C to 125°C
Orientation: Unshrouded
Packaging: Reel
Flammability rating: UL94 V-0
