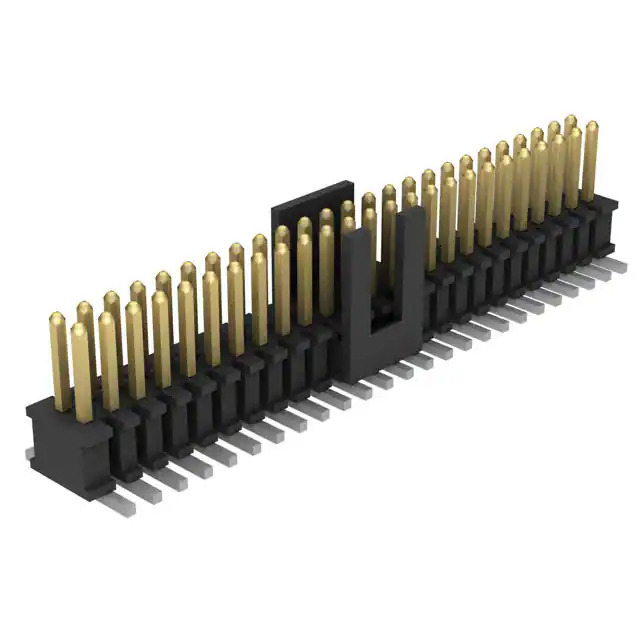

Same model may have multiple batches, images only for reference.

FTSH-125-01-F-DV-K

Name: FTSH-125-01-F-DV-K
Brand: Samtec Inc.
SKU: 1378449
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	FTSH-125-01-F-DV-K
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER SMD 50POS 1.27MM / Connector Header Surface Mount 50 position 0.050" (1.27mm)
Datasheet	FTSH-125-01-F-DV-K Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Samtec Inc.
Series	FTSH
Package	Tube
Product Status	Active
Connector Type	Header, Cuttable
Contact Type	Male Pin
Pitch - Mating	0.050" (1.27mm)
Number of Positions	50
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Shrouded
Mounting Type	Surface Mount
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.120" (3.05mm)
Contact Length - Post	-
Overall Contact Length	-
Insulation Height	0.099" (2.51mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	3.00µin (0.076µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Features	Keying Shroud
Temperature Range - Operating	-55°C ~ 125°C
Ingress Protection	-
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3.4A per Contact
Voltage Rating	-
Mated Stacking Heights	-
Contact Finish Thickness - Post	-
Applications	-
Base Product Number	FTSH-125
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1378449-FTSH-125-01-F-DV-K
Ultra Librarian 3D Model	Ultra Librarian FTSH-125-01-F-DV-K CAD Model

Alternative Products

Description

The FTSH is a rectangular connector header with male pins from Samtec Inc.

Current Rating: 3.4A per contact
Pitch: 0.050" (1.27mm)
Positions: 50
Rows: 2
Row Spacing: 0.050" (1.27mm)
Mounting Type: Surface Mount
Design: Shrouded
Contact Finish: Gold
Contact Finish Thickness: 3.00µin (0.076µm)
Contact Material: Phosphor Bronze
Insulation Material: Liquid Crystal Polymer (LCP)
Application: Board-to-Board or Cable
Fastening Type: Push-Pull
Insulation Height: 0.099" (2.51mm)
Flammability Rating: UL94 V-0
