Same model may have multiple batches, images only for reference.

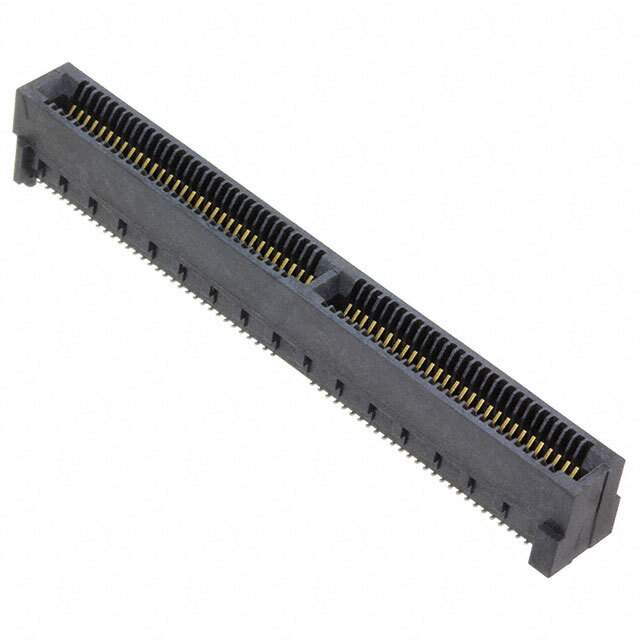

HSEC8-160-01-S-DV-A Real Image
Same model may have multiple batches, images only for reference.

HSEC8-160-01-S-DV-A

Part No HSEC8-160-01-S-DV-A
Manufacturer Samtec Inc.
Catalog Card Edge Connectors - Edgeboard Connectors
Description CONN EDGE DUAL FMALE 120P 0.031 / 120 Position Female Connector Non Specified - Dual Edge Gold 0.031" (0.80mm) Black
Datasheet
HSEC8-160-01-S-DV-A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Card Edge Connectors - Edgeboard Connectors
Mfr Samtec Inc.
Series Edge Rate™ HSEC8
Package Tray
Card Type Non Specified - Dual Edge
Gender Female
Number of Positions 120
Card Thickness 0.062" (1.57mm)
Number of Rows 2
Pitch 0.031" (0.80mm)
Read Out Dual
Features Board Guide
Mounting SMD (SMT)
Termination Solder
Contact Material Beryllium Copper
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Color Black
Temperature Range - Operating -55°C ~ 125°C
Material - Insulation Liquid Crystal Polymer (LCP)
Base Product Number HSEC8-160
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names SAM9509
Standard Package 42
Win Source Part Number 1063528-HSEC8-160-01-S-DV-A
Ultra Librarian 3D Model Ultra Librarian HSEC8-160-01-S-DV-A CAD Model

Description

The Edge Rate™ HSEC8 series card edge connector is a high-quality product with 120 positions manufactured by Samtec Inc.

  • Positions: 120
  • Pitch: 0.031" (0.80mm)
  • Color: Black
  • Package: Tray
  • Contact Material: Beryllium copper
  • Material Insulation: Liquid crystal polymer (LCP)
  • Gender: Female
  • Mounting Style: SMD (SMT)
  • Card Type: Non-specified-dual edge
  • Card Thickness: 0.062" (1.57mm)
  • Read-Out: Dual
  • Operating Temperature: -55°C ~ 125°C
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8536.69.4040
