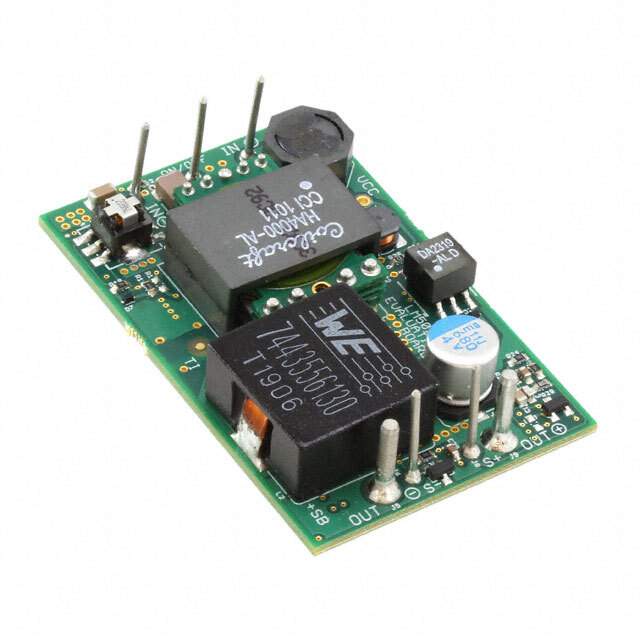

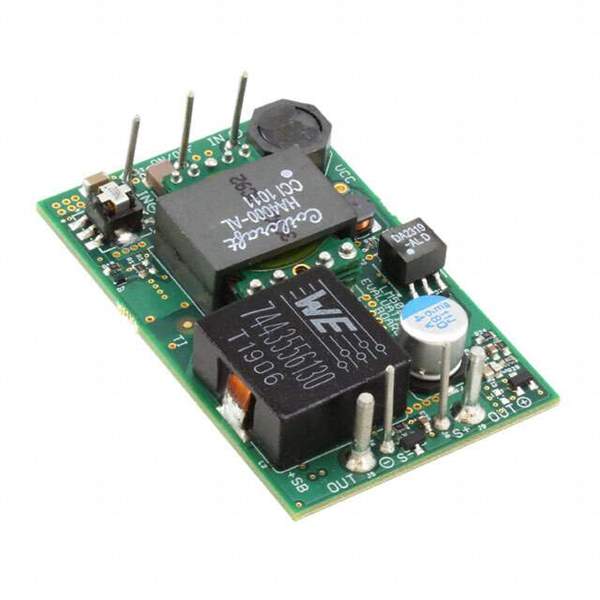

LM5027MH-EVAL/NOPB Evaluation Board by Texas Instruments

The LM5027MH-EVAL/NOPB is a meticulously designed evaluation board from Texas Instruments, created to demonstrate the capabilities of the LM5027 active clamp voltage mode PWM controller. This high-performance controller is optimized for high-efficiency power supply systems, making it an ideal solution for designers looking to evaluate the functionality and features of the LM5027 in a practical setting.

Key Features of the LM5027MH-EVAL/NOPB

• Active Clamp Voltage Mode PWM Controller: The LM5027 integrates an active clamp circuit with a voltage mode PWM controller, providing a robust and efficient switch mode power conversion.
• Advanced Control and Monitoring: It includes features such as programmable line under-voltage lockout, over-voltage protection, and thermal shutdown, ensuring reliable operation under various conditions.
• Adjustable Operating Frequency: The operating frequency of the LM5027 can be adjusted up to 1 MHz, allowing flexibility in the design of the magnetic components and optimization of the power supply performance.
• High-Efficiency Performance: The evaluation board is designed to showcase the high efficiency that can be achieved with the LM5027, making it suitable for high-performance applications where energy conservation is critical.

Applications

The LM5027MH-EVAL/NOPB evaluation board is perfect for a wide range of applications, including:

• Telecommunications power supplies
• Industrial power systems
• Networking equipment
• Server and storage systems

Design and Layout

The evaluation board features a user-friendly layout that simplifies testing and prototyping. It is designed to provide easy access to all critical points of the circuit, allowing for quick measurements and adjustments. The board layout is optimized to minimize parasitic elements, which enhances the overall performance and demonstrates the capabilities of the LM5027 in a real-world scenario.

Support and Resources

Texas Instruments provides comprehensive support for the LM5027MH-EVAL/NOPB evaluation board, including detailed documentation, reference designs, and access to TI's technical support team. This ensures that users can fully explore the features of the LM5027 and integrate it into their designs with confidence.

Whether you are a seasoned engineer or a student learning about power electronics, the LM5027MH-EVAL/NOPB evaluation board is an invaluable tool for understanding and implementing advanced power supply designs.
