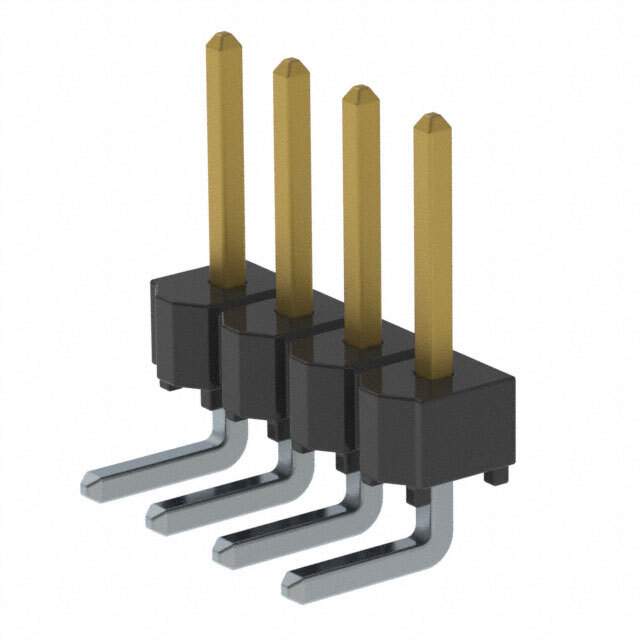

HTSW-104-08-L-S-RA

Name: HTSW-104-08-L-S-RA
Brand: Samtec Inc.
SKU: 1210569
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	HTSW-104-08-L-S-RA
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER R/A 4POS 2.54MM / Connector Header Through Hole, Right Angle 4 position 0.100" (2.54mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Samtec Inc.
Series	HTSW
Package	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	4
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting Type	Through Hole, Right Angle
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.230" (5.84mm)
Contact Length - Post	0.090" (2.29mm)
Insulation Height	0.122" (3.10mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Current Rating (Amps)	Varies by Wire Gauge
Base Product Number	HTSW-104
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8536.69.4040
Standard Package	1
Win Source Part Number	1210569-HTSW-104-08-L-S-RA
Ultra Librarian 3D Model	Ultra Librarian HTSW-104-08-L-S-RA CAD Model

Alternative Products

Description

The HTSW-104-08-L-S-RA from Samtec Inc. is a rectangular connector with male pins.

Connector Type: Header
Fastening Type: Push-Pull
Number of Positions Loaded: 4
Style: Board to Board or Cable
Termination: Solder
Packaging: Bulk
Contact Material: Phosphor Bronze
Contact Finish: Gold
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Finish - Post: Tin
Insulation Material: Liquid Crystal Polymer (LCP)
Insulation Color: Natural
