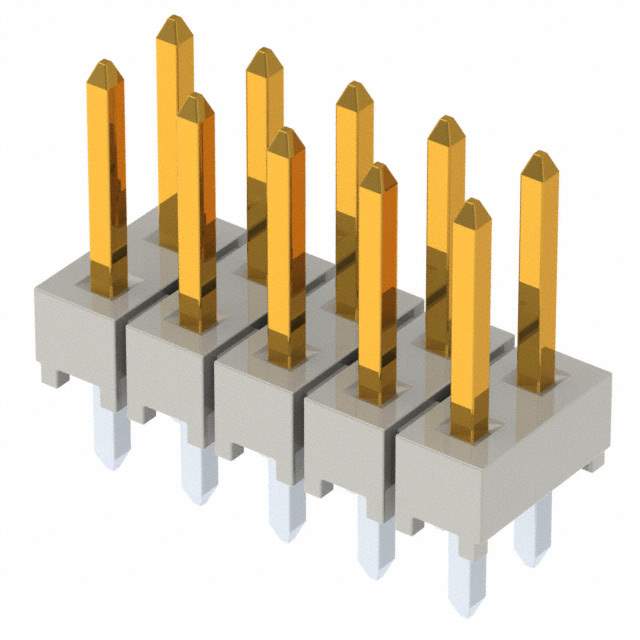

HTSW-105-07-F-D Real Image
Same model may have multiple batches, images only for reference.

HTSW-105-07-F-D

Part No HTSW-105-07-F-D
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN HEADER VERT 10POS 2.54MM / Connector Header Through Hole 10 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Samtec Inc.
Series HTSW
Package Bag
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 10
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Unshrouded
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.230" (5.84mm)
Contact Length - Post 0.100" (2.54mm)
Overall Contact Length 0.430" (10.92mm)
Insulation Height 0.100" (2.54mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 3.00µin (0.076µm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Liquid Crystal Polymer (LCP)
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) Varies by Wire Gauge
Base Product Number HTSW-105
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 1
Win Source Part Number 1199375-HTSW-105-07-F-D
Ultra Librarian 3D Model Ultra Librarian HTSW-105-07-F-D CAD Model

Description

The HTSW-105-07-F-D is a header connector with male pins manufactured by Samtec Inc.

  • Positions: 10
  • Row Configuration: 2-row
  • Pitch: 0.100" (2.54mm)
  • Mounting: through-hole
  • Contact Material: phosphor bronze
  • Contact Plating: gold
  • Insulation Material: liquid crystal polymer (LCP)
  • Insulation Color: natural
  • Temperature Range: -55°C to 125°C
