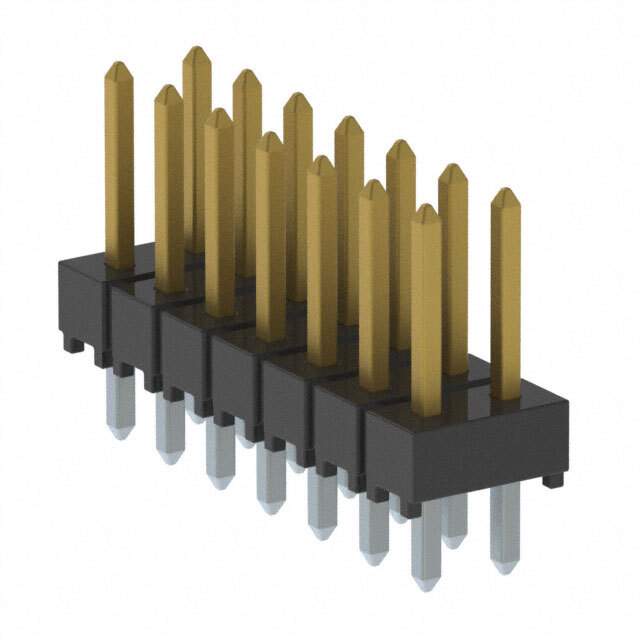

HTSW-107-07-L-D Real Image
Same model may have multiple batches, images only for reference.

HTSW-107-07-L-D

Part No HTSW-107-07-L-D
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN HEADER VERT 14POS 2.54MM  /  Connector Header Through Hole 14 position 0.100" (2.54mm)
Datasheet
HTSW-107-07-L-D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Samtec Inc.
Series HTSW
Package Bag
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 14
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Unshrouded
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.230" (5.84mm)
Contact Length - Post 0.100" (2.54mm)
Overall Contact Length 0.430" (10.92mm)
Insulation Height 0.100" (2.54mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10.0µin (0.25µm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Liquid Crystal Polymer (LCP)
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) Varies by Wire Gauge
Base Product Number HTSW-107
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names SAM9529
Standard Package 1
Win Source Part Number 1209126-HTSW-107-07-L-D
Ultra Librarian 3D Model Ultra Librarian HTSW-107-07-L-D CAD Model

Description

The HTSW series connector is a rectangular male pin header connector with a header connector type and a contact type of male pin.

  • Connector Type: Header
  • Contact Type: Male Pin
  • Positions: 14
  • Style: Board-to-Board or Cable
  • Shrouded: Unshrouded
  • Pitch: 0.100" (2.54mm)
  • Contact Finish - Mating: Gold
  • Contact Finish Thickness: 10.0µin (0.25µm)
  • Contact Finish - Post: Tin
  • Mounting: Through-Hole
  • Fastening Type: Push-Pull
  • Manufacturer: Samtec Inc.
  • Also Known As: HTSW-107-07-L-D
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8536.69.4040
