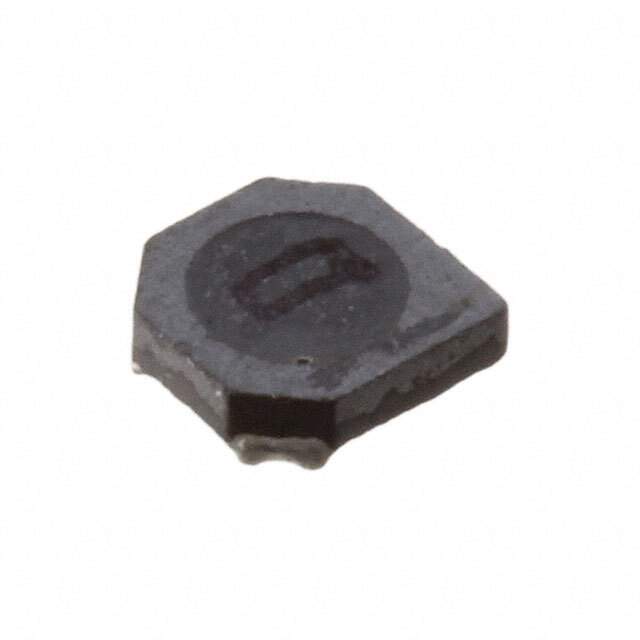

Same model may have multiple batches, images only for reference.

SRU3011-6R8Y

Name: SRU3011-6R8Y
Brand: Bourns Inc.
SKU: 1273080
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SRU3011-6R8Y
Manufacturer	Bourns Inc.
Catalog	Fixed Inductors
Datasheet	SRU3011-6R8Y Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Bourns Inc.
Series	SRU3011
Package	Tape & Reel (TR)
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	6.8 µH
Tolerance	±30%
Current Rating (Amps)	500 mA
Current - Saturation (Isat)	460mA
Shielding	Shielded
DC Resistance (DCR)	245mOhm
Q @ Freq	7 @ 7.96MHz
Frequency - Self Resonant	85MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.138" L x 0.130" W (3.50mm x 3.30mm)
Height - Seated (Max)	0.047" (1.20mm)
Base Product Number	SRU3011
Standard Package	1,500
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	1273080-SRU3011-6R8Y
Ultra Librarian 3D Model	Ultra Librarian SRU3011-6R8Y CAD Model

Alternative Products

Description

The SRU3011-6R8Y series drum core inductor is a fixed inductor with a shielding feature manufactured by Bourns Inc.

Type: Wirewound
Core Material: Ferrite
Inductance: 6.8 µH
Height: 0.047" (1.20mm)
Dimension: 0.138" L x 0.130" W (3.50mm x 3.30mm)
Mounting: SMD (SMT)
Tolerance: ±30%
Q @ Freq: 7 @ 7.96MHz
Frequency Self-Resonant: 85MHz
DC Resistance (DCR): 245mOhm
Current Rating: 500mA
Temperature Range: -40°C ~ 125°C
