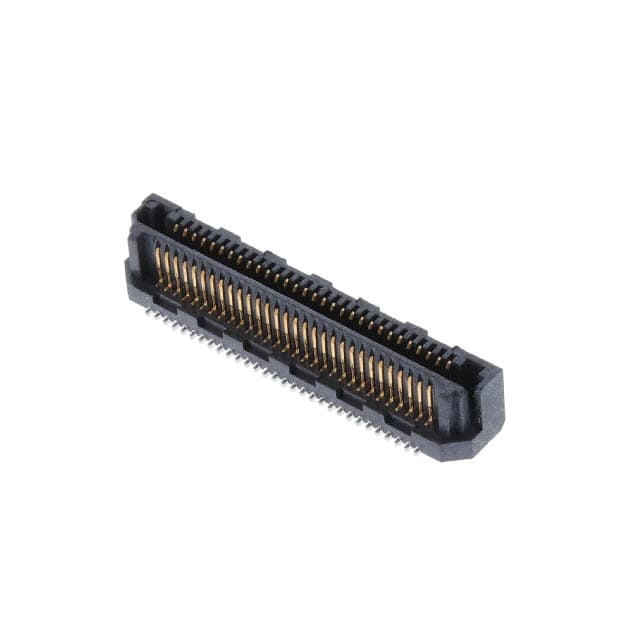

Same model may have multiple batches, images only for reference.
LSS-130-01-L-DV-A-K
Same model may have multiple batches, images only for reference.

LSS-130-01-L-DV-A-K

Part No LSS-130-01-L-DV-A-K
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN SELF-MATE 60POS SMD GOLD / 60 Position Connector Self Mating, Non-Gendered, Hermaphroditic Surface Mount Gold
Datasheet
LSS-130-01-L-DV-A-K Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Samtec Inc.
Series Razor Beam™ LSS
Package Tube
Product Status Active
Connector Type Self Mating, Non-Gendered, Hermaphroditic
Number of Positions 60
Pitch 0.025" (0.64mm)
Number of Rows 2
Mounting Type Surface Mount
Features Board Guide, Pick and Place
Contact Finish Gold
Contact Finish Thickness 10.0µin (0.25µm)
Mated Stacking Heights 6mm, 7mm, 9mm
Height Above Board 0.169" (4.30mm)
Base Product Number LSS-130
Standard Package 24 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
California Prop 65 Warning Information
Win Source Part Number 878279-LSS-130-01-L-DV-A-K
Ultra Librarian 3D Model Ultra Librarian LSS-130-01-L-DV-A-K CAD Model

Description

The Razor Beam™ LSS series from Samtec Inc. offers a high-performance solution for your board-to-board or mezzanine connector needs.

  • Connector Type: Rectangular Connector Array
  • Series: Razor Beam™ LSS
  • Connector Type: Self-Mating, Non-Gendered, Hermaphroditic
  • Pitch: 0.025" (0.64mm)
  • Number of Positions: 60
  • Number of Rows: 2
  • Contact Finish: Gold
  • Contact Finish Thickness: 10.0µin (0.25µm)
  • Mounting Type: Surface Mount
  • Package: Tube
  • Mated Stacking Heights: 6mm, 7mm, and 9mm
  • Height Above Board: 0.169" (4.30mm)
  • RoHS Compliant: Yes
  • Standard Package: 24 pcs
