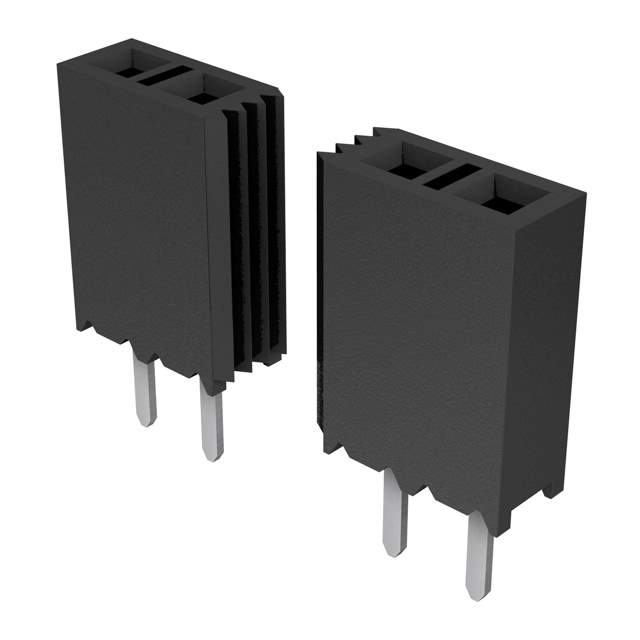

Same model may have multiple batches, images only for reference.

BCS-106-L-S-TE

Name: BCS-106-L-S-TE
Brand: Samtec Inc.
SKU: 1341323
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	BCS-106-L-S-TE
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN RCPT 6POS 0.1 GOLD PCB / 6 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold
Datasheet	BCS-106-L-S-TE Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	Tiger Claw™ BCS
Package	Bulk
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board
Number of Positions	6
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	1
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Insulation Color	Black
Insulation Height	0.290" (7.37mm)
Contact Length - Post	0.120" (3.05mm)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Current Rating (Amps)	4.6A per Contact
Voltage Rating	475VAC
Insulation Material	Liquid Crystal Polymer (LCP) , Glass Filled
Contact Shape	Square
Contact Material	Phosphor Bronze
Contact Finish Thickness - Post	50.0µin (1.27µm)
Base Product Number	BCS-106
Standard Package	1
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
California Prop 65	Warning Information
Win Source Part Number	1341323-BCS-106-L-S-TE
Ultra Librarian 3D Model	Ultra Librarian BCS-106-L-S-TE CAD Model

Alternative Products

Description

The Samtec Inc. Tiger Claw™ BCS Rectangular Connector is a high-quality electronic component used in headers, receptacles, and female sockets.

Series: Tiger Claw™ BCS
Positions: 6
Pitch: 0.100" (2.54mm)
Connector Type: receptacle
Contact Type: female socket
Fastening Type: push-pull
Contact Material: phosphor bronze
Insulation Material: liquid crystal polymer (LCP), glass filled
Voltage Rating: 475VAC
Connector Style: board to board
Mounting Type: through hole
Operating Temperature: -55°C ~ 125°C
