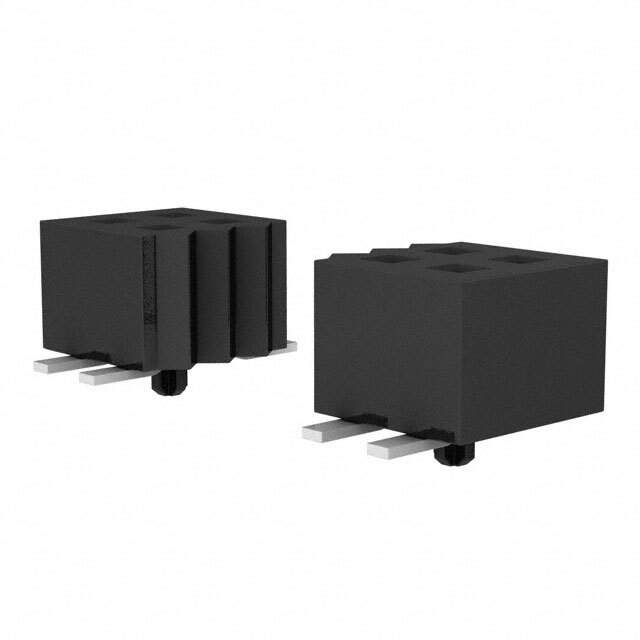

Same model may have multiple batches, images only for reference.

CLP-132-02-F-D-A

Name: CLP-132-02-F-D-A
Brand: Samtec Inc.
SKU: 1352281
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	CLP-132-02-F-D-A
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN RCPT 64POS 0.05 GOLD SMD / 64 Position Receptacle Connector 0.050" (1.27mm) Surface Mount Gold
Datasheet	CLP-132-02-F-D-A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	CLP
Package	Tube
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board
Number of Positions	64
Number of Positions Loaded	All
Pitch - Mating	0.050" (1.27mm)
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Mounting Type	Surface Mount
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	3.00µin (0.076µm)
Insulation Color	Black
Insulation Height	0.084" (2.14mm)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Features	Board Guide
Current Rating (Amps)	3.3A per Contact
Voltage Rating	240VAC, 330VDC
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Phosphor Bronze
Base Product Number	CLP-132
Standard Package	14
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
California Prop 65	Warning Information
Win Source Part Number	1352281-CLP-132-02-F-D-A
Ultra Librarian 3D Model	Ultra Librarian CLP-132-02-F-D-A CAD Model

Alternative Products

Description

The Samtec CLP-132-02-F-D-A is a rectangular connector that features a receptacle connector type with a female socket contact type.

Connector Type: Receptacle
Contact Type: Female Socket
Number of Positions: 64
Number of Positions Loaded: All
Pitch: 0.050" (1.27mm)
Mated Stacking Heights: 0.084" (2.13mm)
Current Rating (Per Contact): 3.3A
Voltage Rating: 240VAC, 330VDC
Packaging: Tube
Operating Temperature: -55°C ~ 125°C
Applications: Board to Board
