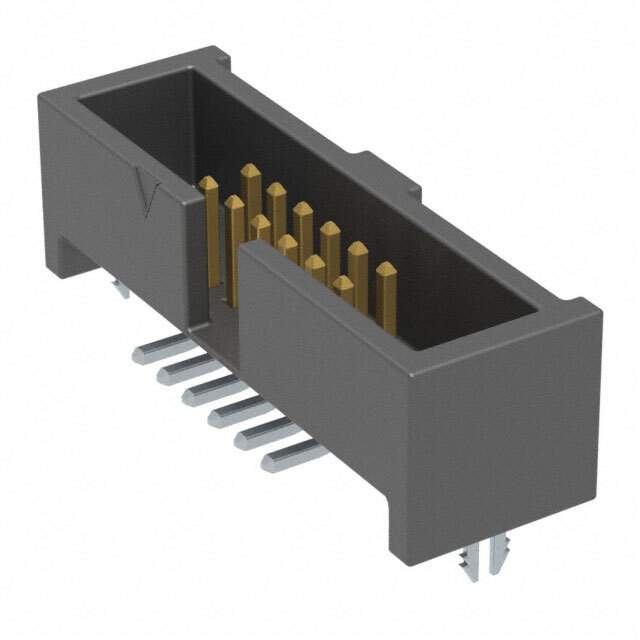

ESHF-106-01-L-D-SM-LC

Name: ESHF-106-01-L-D-SM-LC
Brand: Samtec Inc.
SKU: 1338451
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	ESHF-106-01-L-D-SM-LC
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER SMD 12POS 1.27MM / Connector Header Surface Mount 12 position 0.050" (1.27mm)
Datasheet	ESHF-106-01-L-D-SM-LC Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Samtec Inc.
Series	ESHF
Package	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.050" (1.27mm)
Number of Positions	12
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Surface Mount
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.120" (3.05mm)
Insulation Height	0.215" (5.45mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Features	Board Lock, Keying Slot
Temperature Range - Operating	-55°C ~ 125°C
Insulation Color	Black
Base Product Number	ESHF-106
Standard Package	32
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
California Prop 65	Warning Information
Win Source Part Number	1338451-ESHF-106-01-L-D-SM-LC
Ultra Librarian 3D Model	Ultra Librarian ESHF-106-01-L-D-SM-LC CAD Model

Alternative Products

Description

The Samtec Inc. ESHF-106-01-L-D-SM-LC is a male pin rectangular connector.

Series: ESHF
Positions: 12
Features: Board Lock, Keying Slot
Fastening Type: Push-Pull
Shrouding: Shrouded 4 Wall
Mounting Type: Surface Mount
Contact Material: Phosphor Bronze
Insulation Material: Liquid Crystal Polymer (LCP)
Pitch - Mating: 0.050" (1.27mm)
Operating Temperature: -55°C ~ 125°C
