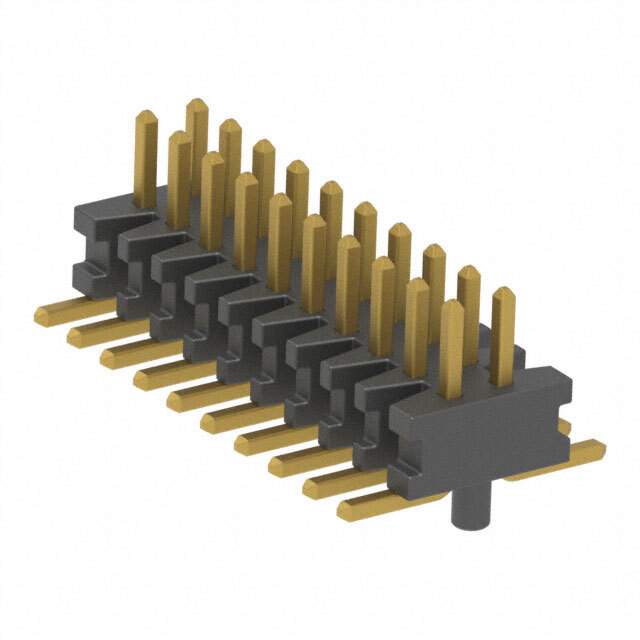

Same model may have multiple batches, images only for reference.

FTMH-110-03-H-DV-A

Name: FTMH-110-03-H-DV-A
Brand: Samtec Inc.
SKU: 1339004
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	FTMH-110-03-H-DV-A
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER SMD 20POS 1MM / Connector Header Surface Mount 20 position 0.039" (1.00mm)
Datasheet	FTMH-110-03-H-DV-A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Samtec Inc.
Series	FTMH
Package	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.039" (1.00mm)
Number of Positions	20
Number of Rows	2
Row Spacing - Mating	0.039" (1.00mm)
Number of Positions Loaded	All
Style	Board to Board
Shrouding	Unshrouded
Mounting Type	Surface Mount
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.065" (1.65mm)
Insulation Height	0.059" (1.50mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Contact Finish - Post	Gold
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Features	End Shrouds
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	2.8A per Contact
Contact Finish Thickness - Post	3.00µin (0.076µm)
Base Product Number	FTMH-110
Standard Package	58
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
California Prop 65	Warning Information
Win Source Part Number	1339004-FTMH-110-03-H-DV-A
Ultra Librarian 3D Model	Ultra Librarian FTMH-110-03-H-DV-A CAD Model

Alternative Products

Description

The FTMH-110-03-H-DV-A from Samtec Inc. is a high-quality electronic component that is part of the Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins category.

Category: Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Win Source Part Number: 1339004
Series: FTMH
Package: Bulk
Standard Package: 58
