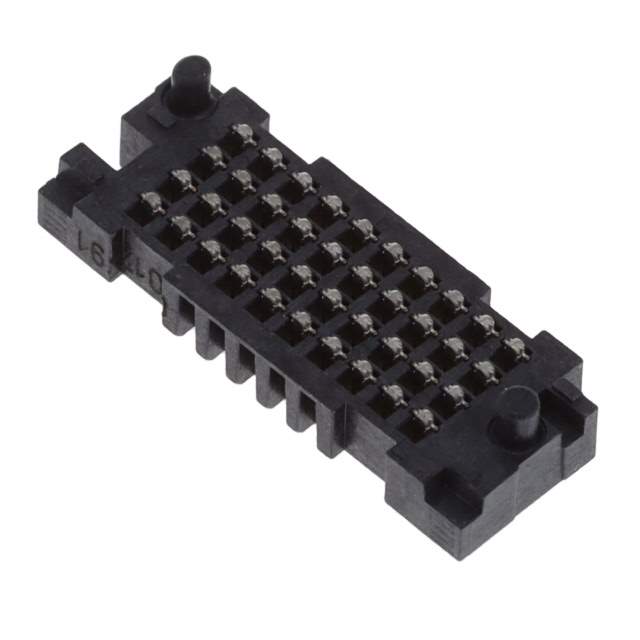

Same model may have multiple batches, images only for reference.

LPAF-10-03.0-L-04-2-K-TR

Name: LPAF-10-03.0-L-04-2-K-TR
Brand: Samtec Inc.
SKU: 1340144
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	LPAF-10-03.0-L-04-2-K-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN ARRAY RCPT 40POS SMD GOLD / 40 Position Connector Array, Female Sockets Surface Mount Gold
Datasheet	LPAF-10-03.0-L-04-2-K-TR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Samtec Inc.
Series	LP Arrary™
Package	Tape & Reel
Connector Type	Array, Female Sockets
Number of Positions	40
Pitch	0.050" (1.27mm)
Number of Rows	4
Mounting Type	Surface Mount
Features	Board Guide, Pick and Place
Contact Finish	Gold
Contact Finish Thickness	10.0µin (0.25µm)
Mated Stacking Heights	4mm, 4.5mm
Height Above Board	0.110" (2.79mm)
Base Product Number	LPAF-10
Standard Package	700
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
California Prop 65	Warning Information
Win Source Part Number	1340144-LPAF-10-03.0-L-04-2-K-TR
Ultra Librarian 3D Model	Ultra Librarian LPAF-10-03.0-L-04-2-K-TR CAD Model

Alternative Products

Description

The Samtec LP Arrary™ series rectangular connector array is designed for board-to-board applications.

Positions: 40
Pitch: 0.050 inches
Connector Type: Female Socket
Number of Rows: Four
Contact Finish: Gold with a thickness of 10.0 µin
Height Above Board: 0.110 inches
Packaging: Tape and Reel
Mated Stacking Height: 4mm and 4.5mm
Mounting Type: Surface Mount
Manufacturer: Samtec Inc.
California Prop 65: Compliant
