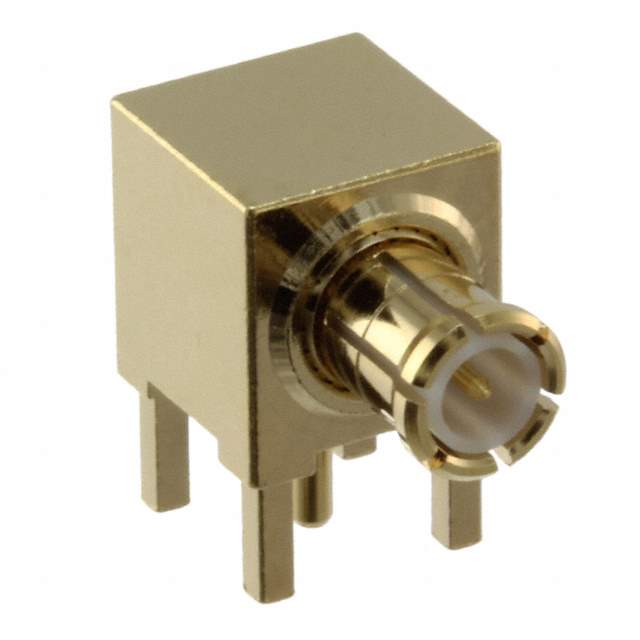

MCX-P-P-H-RA-TH1 Real Image
Same model may have multiple batches, images only for reference.

MCX-P-P-H-RA-TH1

Part No MCX-P-P-H-RA-TH1
Manufacturer Samtec Inc.
Catalog Coaxial Connectors (RF) - Assemblies
Description CONN MCX PLUG R/A 50 OHM PCB / MCX Connector Plug, Male Pin 50Ohm Through Hole, Right Angle Solder
Datasheet
MCX-P-P-H-RA-TH1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Coaxial Connectors (RF)>Coaxial Connector (RF) Assemblies
Manufacturer Samtec Inc.
Packaging Tray
Connector Style MCX
Connector Type Plug, Male Pin
Contact Termination Solder
Shield Termination Solder
Impedance 50Ohm
Mounting Through Hole, Right Angle
Fastening Type Snap-On
Frequency - Max 6 GHz
Number of Ports 1
Housing Color Gold
Center Contact Material Brass
Body Material Copper Alloy
Body Finish Gold
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE)
Temperature Range - Operating -65°C ~ 125°C
Base Product Number MCX-P
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4010
Other Part Number SAM9697
Standard Package 1
Win Source Part Number 1331992-MCX-P-P-H-RA-TH1
Ultra Librarian 3D Model Ultra Librarian MCX-P-P-H-RA-TH1 CAD Model

Description

The Samtec Inc. MCX-P-P-H-RA-TH1 is a coaxial connector (RF) assembly with a plug, male pin connector type and snap-on fastening type.

  • Connector Type: Plug, Male Pin
  • Fastening Type: Snap-On
  • Frequency Max: 6 GHz
  • Housing Color: Gold
  • Number of Ports: 1
  • Mounting: Through Hole, Right Angle
  • Impedance: 50Ohm
  • Body Material: Copper Alloy
  • Application: Connectors and Interconnects
