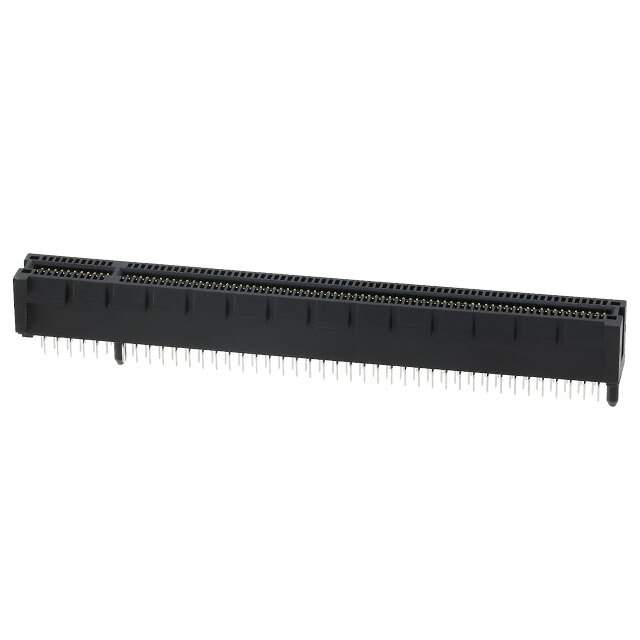

PCIE-164-02-F-D-TH Real Image
Same model may have multiple batches, images only for reference.

PCIE-164-02-F-D-TH

Part No PCIE-164-02-F-D-TH
Manufacturer Samtec Inc.
Catalog Card Edge Connectors - Edgeboard Connectors
Description CONN PCI EXP FMALE 164POS 0.039 / 164 Position Female Connector PCI Express™ Gold 0.039" (1.00mm) Black
Datasheet
PCIE-164-02-F-D-TH Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Card Edge Connectors - Edgeboard Connectors
Mfr Samtec Inc.
Series PCI Express® (PCIe)
Package Tube
Card Type PCI Express™
Gender Female
Number of Positions 164
Card Thickness 0.062" (1.57mm)
Number of Rows 2
Pitch 0.039" (1.00mm)
Read Out Dual
Features Board Guide
Mounting Type Through Hole
Termination Solder, Staggered
Contact Material Phosphor Bronze
Contact Finish Gold
Contact Finish Thickness 3.00µin (0.076µm)
Color Black
Temperature Range - Operating -55°C ~ 125°C
Material - Insulation Polyamide (PA66) , Nylon 6/6
Base Product Number PCIE-164
Standard Package 6
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
California Prop 65 Warning Information
Win Source Part Number 1341462-PCIE-164-02-F-D-TH
Ultra Librarian 3D Model Ultra Librarian PCIE-164-02-F-D-TH CAD Model

Description

The Samtec Inc. PCIE-164-02-F-D-TH is a 164-position PCI Express™ edgeboard connector.

  • Product Name: PCIE-164-02-F-D-TH
  • Manufacturer: Samtec Inc.
  • Number of Positions: 164
  • Type: PCI Express™ Edgeboard Connector
  • Pitch: 0.039” (1.00mm)
  • Mounting Type: Through Hole
  • Package Quantity: 6
  • Card Thickness: 0.062” (1.57mm)
  • Contact Material: Phosphor Bronze
  • Contact Finish: Gold
  • Contact Finish Thickness: 3.00μin (0.076μm)
