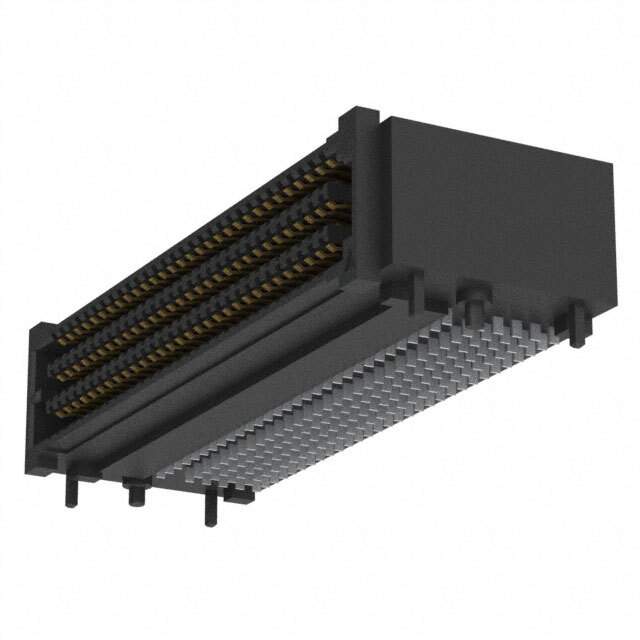

Same model may have multiple batches, images only for reference.

SEAF-30-01-L-06-2-RA-TR

Name: SEAF-30-01-L-06-2-RA-TR
Brand: Samtec Inc.
SKU: 1293896
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SEAF-30-01-L-06-2-RA-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SEAF-30-01-L-06-2-RA-TR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Samtec Inc.
Series	SEARAY™ SEAF
Package	Tape & Reel
Connector Type	High Density Array, Female
Number of Positions	180
Pitch	0.050" (1.27mm)
Number of Rows	6
Mounting Type	Surface Mount, Right Angle
Features	Board Guide
Contact Finish	Gold
Contact Finish Thickness	10.0µin (0.25µm)
Height Above Board	0.411" (10.45mm)
Base Product Number	SEAF-30
Other Names	SAM14325CT,SAM14325DKR,SEAF-30-01-L-06-2-RA-TR,SAM14325TR,SEAF-30-01-L-06-2-RA-FR
Standard Package	100
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1293896-SEAF-30-01-L-06-2-RA-TR
Ultra Librarian 3D Model	Ultra Librarian SEAF-30-01-L-06-2-RA-TR CAD Model

Alternative Products

Description

The SEARAY™ SEAF series rectangular connector is a high-density array, female connector that is designed for use in electronic devices.

Positions: 180
Pitch: 0.050" (1.27mm)
Board Guide: Yes
Contact Finish: Gold
Mounting: Surface Mount, Right Angle Mounted
Packaging: Tape & Reel
Height Above Board: 0.411" (10.45mm)
Packaging: Standard Packaged
Package Quantity: 100
Base Product Number: SEAF-30
Manufacturer: Samtec Inc.
