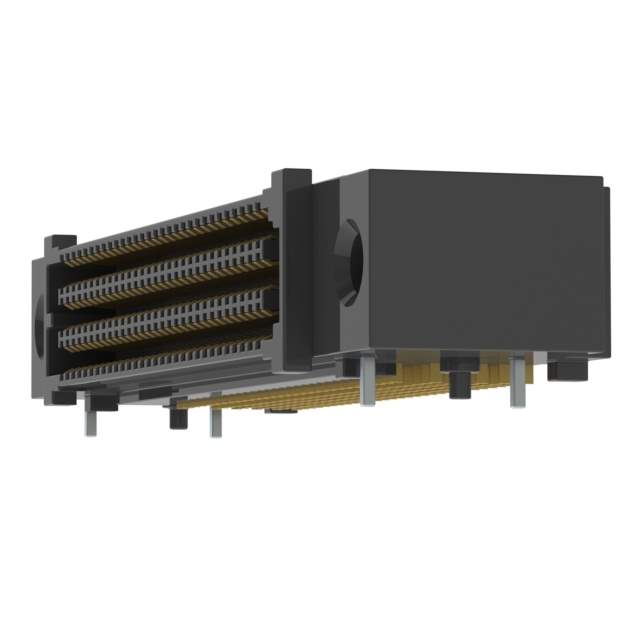

SEAF-30-01-S-06-2-RA-GP-K-TR Real Image
Same model may have multiple batches, images only for reference.

SEAF-30-01-S-06-2-RA-GP-K-TR

Part No SEAF-30-01-S-06-2-RA-GP-K-TR
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SEAF-30-01-S-06-2-RA-GP-K-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Samtec Inc.
Series SEARAY™ SEAF
Package Tape & Reel (TR)
Connector Type High Density Array, Female
Number of Positions 180
Pitch 0.050" (1.27mm)
Number of Rows 6
Mounting Type Surface Mount, Right Angle
Features Board Guide, Mating Flange, Pick and Place
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Height Above Board 0.411" (10.45mm)
Base Product Number SEAF-30
Standard Package 100
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1293711-SEAF-30-01-S-06-2-RA-GP-K-TR
Ultra Librarian 3D Model Ultra Librarian SEAF-30-01-S-06-2-RA-GP-K-TR CAD Model

Description

The Samtec Inc. SEAF-30-01-S-06-2-RA-GP-K-TR is a high-density array connector that features a female connector type and has 180 positions.

  • Connector Type: Female
  • Positions: 180
  • Pitch: 0.050 inches
  • Package: Tape & Reel
  • Applications: Mezzanine (Board-to-Board)
  • Height Above the Board: 0.411 inches
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0µin
