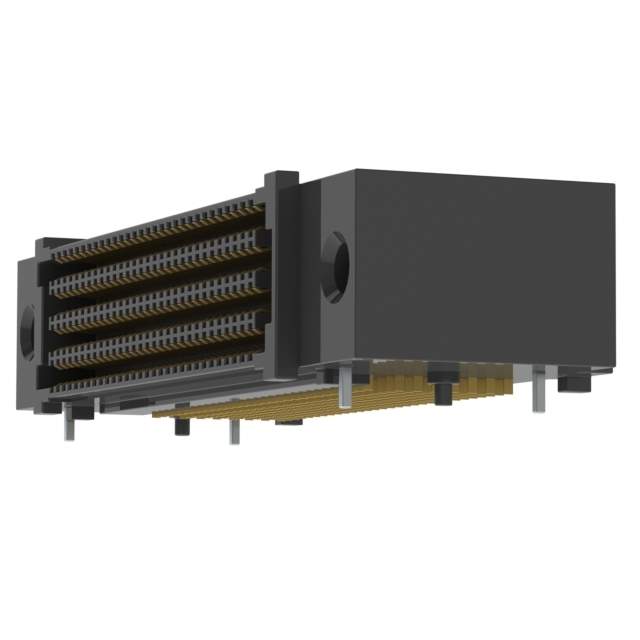

SEAF-30-01-S-08-2-RA-GP-TR

Part No SEAF-30-01-S-08-2-RA-GP-TR
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
Sample
ECAD Module ECAD
rohs

Shipping Information

Shipped from HK warehouse
Expected Shipping Date Ask for an estimation

Products specifications

Category Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Samtec Inc.
Series SEARAY™ SEAF
Package Tape & Reel (TR)
Connector Type High Density Array, Female
Number of Positions 240
Pitch 0.050" (1.27mm)
Number of Rows 8
Mounting Type Surface Mount, Right Angle
Features Board Guide, Mating Flange
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Height Above Board 0.511" (12.99mm)
Base Product Number SEAF-30
Standard Package 75
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1293653-SEAF-30-01-S-08-2-RA-GP-TR
Fake Threat In the Open Market 66 pct.

Description

The SEARAY™ SEAF high density array, female connector is a rectangular connector with a pitch of 0.050" (1.27mm) and 240 number of positions. It features a board guide and mating flange for easy installation. The contact finish is gold with a thickness of 30.0µin (0.76µm), and the connector type is edge type, mezzanine (board to board). It has 8 number of rows and is mounted on a surface mount, right angle. The connector is tape & reel packaged with a standard package of 75. The height above board is 0.511" (12.99mm). This connector is manufactured by Samtec Inc.
