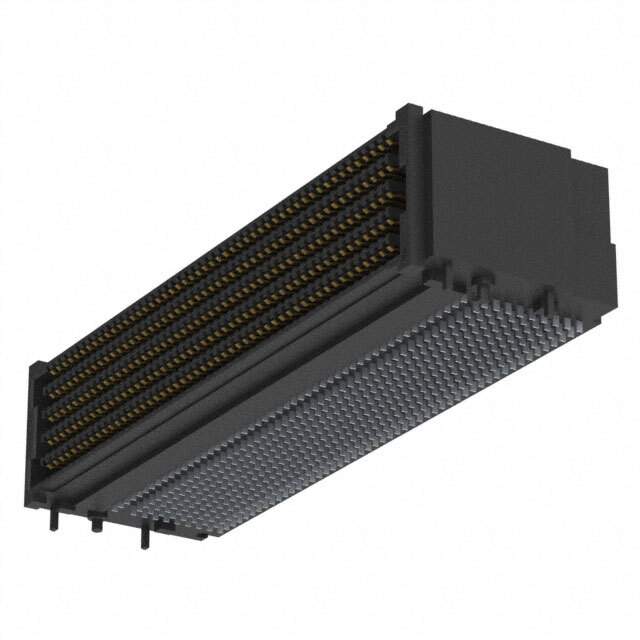

Same model may have multiple batches, images only for reference.

SEAF-50-01-L-10-2-RA-K-TR

Name: SEAF-50-01-L-10-2-RA-K-TR
Brand: Samtec Inc.
SKU: 1293832
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	SEAF-50-01-L-10-2-RA-K-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SEAF-50-01-L-10-2-RA-K-TR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Samtec Inc.
Series	SEARAY™ SEAF
Package	Tape & Reel (TR),Cut Tape (CT)
Connector Type	High Density Array, Female
Number of Positions	500
Pitch	0.050" (1.27mm)
Number of Rows	10
Mounting Type	Surface Mount, Right Angle
Features	Board Guide, Pick and Place
Contact Finish	Gold
Contact Finish Thickness	10.0µin (0.25µm)
Height Above Board	0.611" (15.53mm)
Base Product Number	SEAF-50
Other Names	612-SEAF-50-01-L-10-2-RA-K-TR,SEAF-50-01-L-10-2-RA-K-TR,612-SEAF-50-01-L-10-2-RA-K-TRCT
Standard Package	50
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1293832-SEAF-50-01-L-10-2-RA-K-TR
Ultra Librarian 3D Model	Ultra Librarian SEAF-50-01-L-10-2-RA-K-TR CAD Model

Alternative Products

Description

The SEARAY™ SEAF series female high density array connector is a high quality rectangular connector designed for board-to-board or mezzanine applications.

Series: SEARAY™ SEAF
Type: Female High Density Array Connector
Connector Type: Rectangular Connector
Application: Board-to-Board or Mezzanine
Pitch: 0.050 inches (1.27mm)
Positions: 500
Mounting Type: Right Angle Surface Mount
Packaging: Tape and Reel or Cut Tape
Contact Material: Gold
Contact Finish Thickness: 10.0μin (0.25μm)
RoHS Compliant: Yes
Height Above Board: 0.611 inches (15.53mm)
Standard Package: 50
Insulation Material: Liquid Crystal Polymer (LCP)
