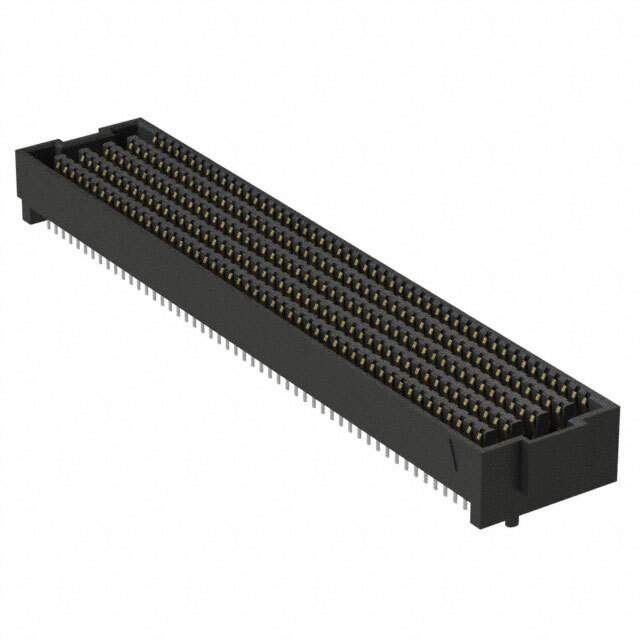

The SEARAY™ SEAF connector is a high density array, female type connector with 500 positions and a pitch of 0.050" (1.27mm).

• Series: SEARAY™ SEAF
• Connector Type: High Density Array, Female
• Positions: 500
• Pitch: 0.050" (1.27mm)
• Features: Board Guide and Pick-and-Place
• Contact Finish: Gold
• Contact Finish Thickness: 10.0µin (0.25µm)
• Packaging: Tape & Reel (TR) and Cut Tape (CT)
• Mated Stacking Heights: 7mm, 8mm, 8.5mm, 11.5mm, 12mm, 14mm, 16mm, and 18mm
• Height Above Board: 0.199" (5.05mm)
• RoHS Compliant: No
• Standard Package: 275
• Mounting: Surface Mount
• ECCN: EAR99
